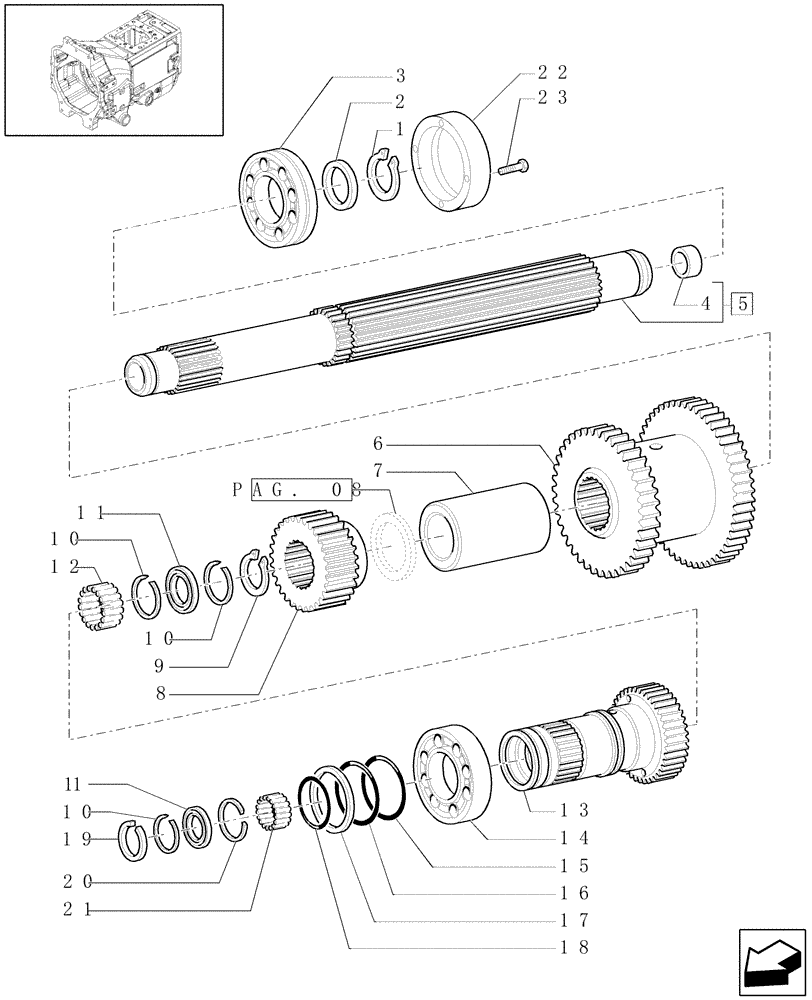

Запчасти Case IH PUMA 195 (1.28.7[04]) - SPEED GEARS AND CLUTCHES - TOP DRIVING SHAFT AND GEARS (03) - TRANSMISSION

1

5138419

SNAP RING,M50

1шт.

2

5144962

THRUST WASHER,50.1mm ID x 62mm OD x 3mm Thk

1шт.

3

28995910

BALL BEARING,110.00mm OD

1шт.

4

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

5

5183123

MAIN SHAFT

Includes Ref. 4

1шт.

6

5183132

GEAR

III-IV-V-VI Speed, Z=40/54, Serial Range: -Z7BH02153

1шт.

For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

6

87316208

PINION

III-IV-V-VI Speed, Z=40/48, Serial Range: -Z7BH02153

1шт.

For PUMA 210 Model

1шт.

6

87553311

PINION

III-IV-V-VI Speed, Z=42/50, Start Serial: Z7BH02154

1шт.

7

5183725

SPACER,54.7mm ID x68mm OD x 103.75mm L

1шт.

8

5183130

GEAR

I Speed, Z=32, Serial Range: -Z7BH02153

1шт.

8

87557567

PINION

I Speed, Z=34, Start Serial: Z7BH02154

1шт.

9

5134792

SNAP RING,50.80mm ID, 3mm Thk

1шт.

10

5142178

SNAP RING,1.5mm Thk

3шт.

11

5162255

GASKET,50mm ID x 58mm OD x 4mm Thk

2шт.

12

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

13

5183144

GEAR

II Speed, Z=37, Serial Range: -Z7BH02153

1шт.

For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

13

87558726

GEAR SHAFT

II Speed, Z=39, Start Serial: Z7BH02154

1шт.

For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

13

87373861

GEAR SHAFT

II Speed, Z=37, Serial Range: -Z7BH02153

1шт.

For PUMA 210 Model

1шт.

13

87553308

PINION

II Speed, Z=39, Start Serial: Z7BH02154

1шт.

For PUMA 210 Model

1шт.

14

28996390

BALL BEARING,75mm x 130mm x 25mm

1шт.

For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

14

87373867

BALL BEARING,80mm ID x 140mm OD x 26mm W

1шт.

For PUMA 210 Model

1шт.

15

14460680

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

1шт.

16

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

17

5162361

RING,66.83mm ID x 72.83mm OD x 1.27mm Thk

1шт.

18

14455480

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

1шт.

19

5195945

SEALING RING,Split, 41.3mm ID x 45mm OD x 2.4mm Thk

1шт.

20

5149933

SNAP RING,55mm, 1.5mm Thk, Int

1шт.

21

5162254

NEEDLE BEARING,50mm ID x 55mm OD x 20mm W

1шт.

22

5171949

COVER

1шт.

23

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.
