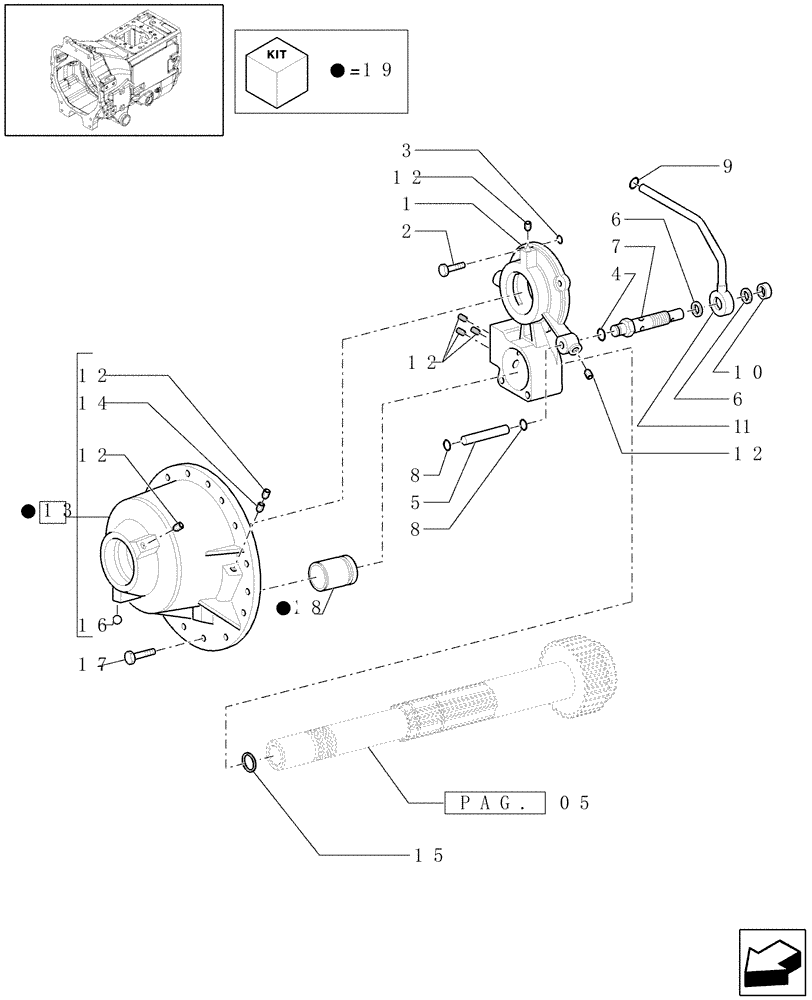

Запчасти Case IH PUMA 195 (1.28.7[01]) - SPEED GEARS AND CLUTCHES - SUPPORT AND MANIFOLD (03) - TRANSMISSION

1

5183139

MANIFOLD

Includes Ref. 12 (q.ty 5)

1шт.

For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

1

87603544

MANIFOLD

, Serial Range: -C5606

1шт.

For PUMA 210 Model

1шт.

1

87611992

MANIFOLD

, Start Serial: D5606

1шт.

For PUMA 210 Model

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

3

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

5178212

TUBE,97mm L

1шт.

6

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

7

5183121

HYD CONNECTOR

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

9

5172342

O-RING,0.139" Thk x 0.609" ID, -208, 70 Duro

1шт.

10

5164984

SPACER,22.3mm ID x 30mm OD x 7.5mm L

1шт.

11

5186710

TUBE

1шт.

12

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

7шт.

13

5183126

COVER

Includes Ref. 12 (q.ty 2), 14, 16, Serial Range: -C6254

1шт.

13

87499428

COVER

, Start Serial: D6254

1шт.

14

5183149

ORIFICE,M12 x 1.25 x 8mm ID x 20mm L

1шт.

15

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

1шт.

16

20063460

BALL,7.14mm OD, Gr 100

1шт.

17

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

10шт.

18

5171880

TUBE

1шт.

19

84134779

COVER

, Start Serial: D6254

1шт.
