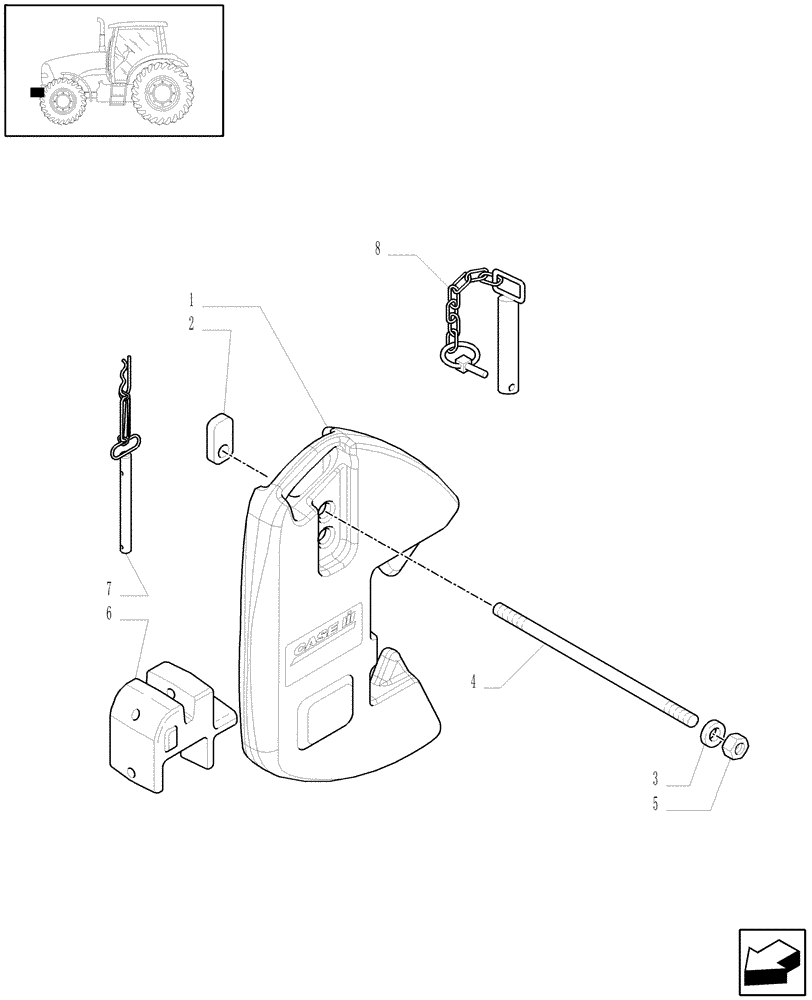

Запчасти Case IH PUMA 195 (1.21.5/03) - (VAR.037-066) WEIGHT PACK INCLUDING INTEGRAL CARRIER (03) - TRANSMISSION

1

86988727

WEIGHT,45Kg

1шт.

Q.ty=6 for Weught Pack "B", VAR.066, Q.ty=10 for Weight Pack "F", VAR.037

1шт.

2

44995007

CLAMP,Grey

PLATE

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

16x40x5

2шт.

4

82028019

ROD,M16 x 2 x 610.00mm, ZND

16x610

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

M16 x 2

4шт.

6

82024272

SUPPORT,110Kg

1шт.

With Weight Pack "B" Only, VAR.066

1шт.

7

44995008

CLEVIS PIN,31mm OD x 337mm L

1шт.

With Weight Pack "B" Only, VAR.066

1шт.

8

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.
