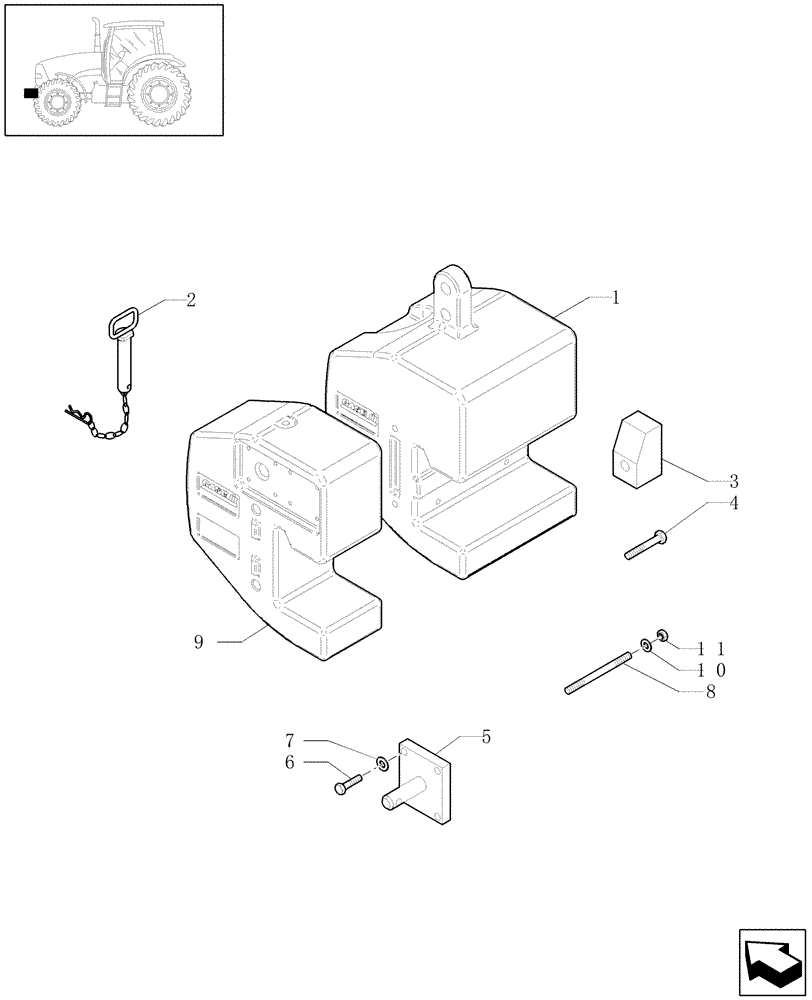

Запчасти Case IH PUMA 195 (1.21.5/01) - (VAR.068) WEIGHT CARRIER - WITH HOOK (03) - TRANSMISSION

1

87376053

WEIGHT

500 Kg

1шт.

2

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

3

87376911

CLAMP,0.932 Kg

2шт.

4

11119921

SCREW,Hex, M16 x 100mm, Cl 8.8

2шт.

5

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

6

11113021

BOLT,Hex, M12 x 45mm, Cl 8.8

8шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

8

87377164

STUD,M20 x 2.5 x 270.00mm, Cl 8.8, ZND

4шт.

9

87376051

WEIGHT

250 Kg

2шт.

10

14497101

WASHER,M20 x 37 x 3

4шт.

11

12163511

NUT,M20, Cl 8

4шт.
