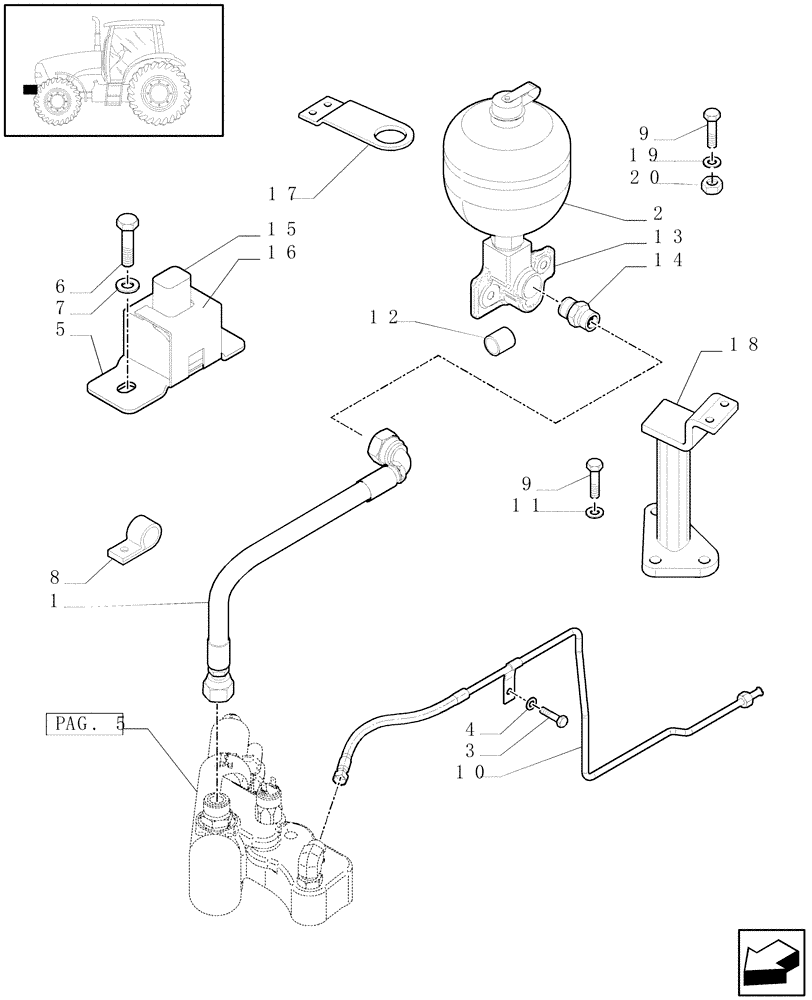

Запчасти Case IH PUMA 195 (1.21.3[07]) - (VAR.212-463) 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - CYLINDER, ACCUMULATOR AND PIPES (03) - TRANSMISSION

1

87545810

HOSE

1шт.

2

87536942

ACCUMULATOR,1L

, Serial Range: -Z8BH21365

1шт.

2

87383952

ACCUMULATOR

, Start Serial: Z8BH21366

1шт.

3

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

4

10615879

LOCK WASHER,Serr, M12

1шт.

5

87347720

BRACKET

1шт.

6

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

8

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

5шт.

10

87545814

HYD TUBE,12 mm OD x 713, 332 mm L

, Serial Range: -C6087

1шт.

10

87601955

HYD TUBE,12 mm OD x 713, 312 mm L

, Start Serial: D6087

1шт.

11

83907686

WASHER,M6 x 6.4mm ID x 12.0mm OD x 1.5mm Thk

3шт.

12

87340132

SPACER

1шт.

13

87545808

MANIFOLD

1шт.

14

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

15

87306782

RELAY

1шт.

16

87319086

MOUNTING CLIP

1шт.

17

87383955

BRACKET

, Start Serial: Z8BH21366

1шт.

18

87383954

SUPPORT

, Start Serial: Z8BH21366

1шт.

19

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

, Start Serial: Z8BH21366

1шт.

20

87536932

THIN NUT

, Start Serial: Z8BH21366

1шт.
