(1.21.3[06]) - (VAR.212-463) 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - CYLINDER - C5972

Запчасти Case IH PUMA 195 (1.21.3[06]) - (VAR.212-463) 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - CYLINDER - C5972 (03) - TRANSMISSION

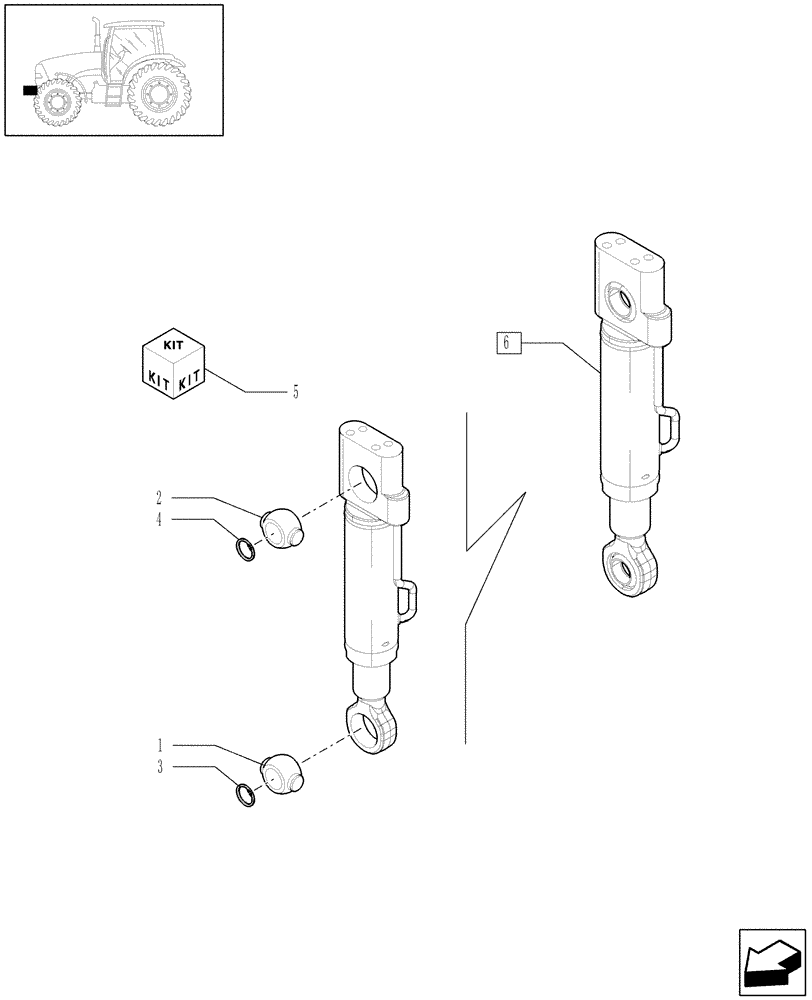

Схема запчастей Case IH PUMA 195 - (1.21.3[06]) - (VAR.212-463) 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - CYLINDER - C5972 (03) - TRANSMISSION
6
2
4
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

1шт.

2

87340141

SPHERICAL BEARING,40mm ID x 68mm OD x 40mm W

1шт.

3

11061076

SNAP RING,M62, Int

1шт.

4

11061376

SNAP RING,M68, Int

1шт.

5

87644378

SEAL KIT

1шт.

6

87644387

CYLINDER,60mm Rod, 146mm Stroke

1шт.
