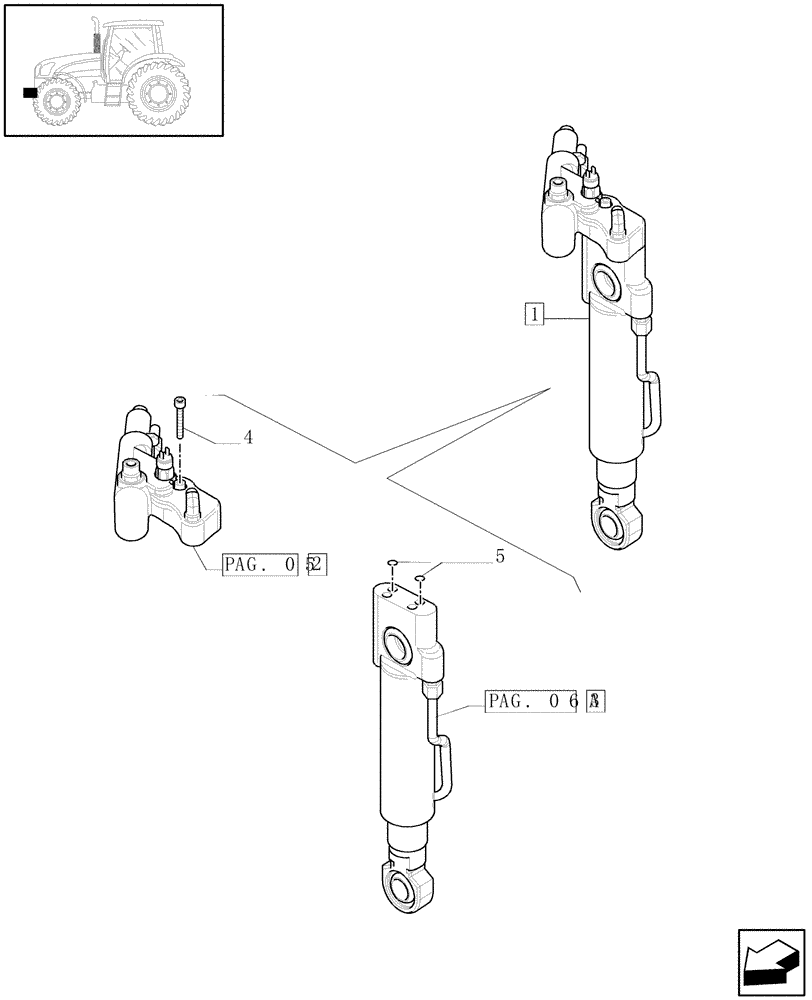

(1.21.3[04A]) - (VAR.212-463) 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - CYLINDER - D5972

Запчасти Case IH PUMA 195 (1.21.3[04A]) - (VAR.212-463) 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - CYLINDER - D5972 (03) - TRANSMISSION

Схема запчастей Case IH PUMA 195 - (1.21.3[04A]) - (VAR.212-463) 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - CYLINDER - D5972 (03) - TRANSMISSION
06a
2
p
05
p
.
1
a
5
g
4
.
a
3
g
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87383950

OPERATING CYLINDER

1шт.

2

87383948

ELECTRO-VALVE

1шт.

3

87644387

CYLINDER,60mm Rod, 146mm Stroke

1шт.

4

14420874

SCREW,M10 x 60mm, Cl 12.9

2шт.

5

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

Выбрано товаров: 0
