Запчасти Case IH PUMA 195 (1.21.1[03]) - FRONT AXLE TRUNNIONS (4WD) (03) - TRANSMISSION

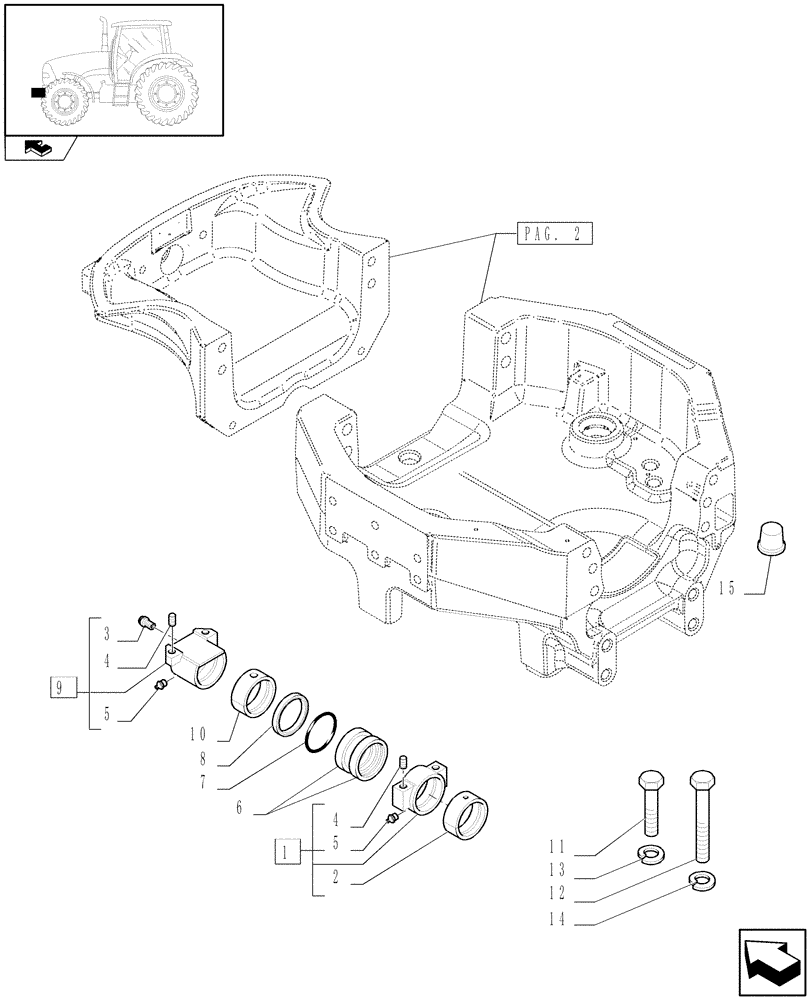

Схема запчастей Case IH PUMA 195 - (1.21.1[03]) - FRONT AXLE TRUNNIONS (4WD) (03) - TRANSMISSION
10
3
13
8
1
15
4
5
11
home
5
14
9
12
6
2
4
pag. 2
7

Артикул

Название

Примечание

Количество

1

82037750

BEARING

1шт.

2

5140589

BUSHING,115.64mm ID x 120.19mm OD x 52mm L

1шт.

3

13410917

VALVE PRESSURE RELIE

1шт.

4

10837710

DOWEL,M10 x 25

4шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

5188607

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

2шт.

7

14471680

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

1шт.

8

5140888

RING

1шт.

9

82037752

BEARING

1шт.

10

5140889

BUSHING,62.8mm ID x 68.19mm OD x 55mm L

1шт.

11

15227034

BOLT,M22 x 115mm, Cl 10.9, Full Thd

M22x2.5x115

2шт.

12

15223334

BOLT,Hex, M18 x 125mm, Cl 10.9, Full Thd

M18x2.5x125

2шт.

13

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

2шт.

14

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

15

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

18шт.

Выбрано товаров: 15
