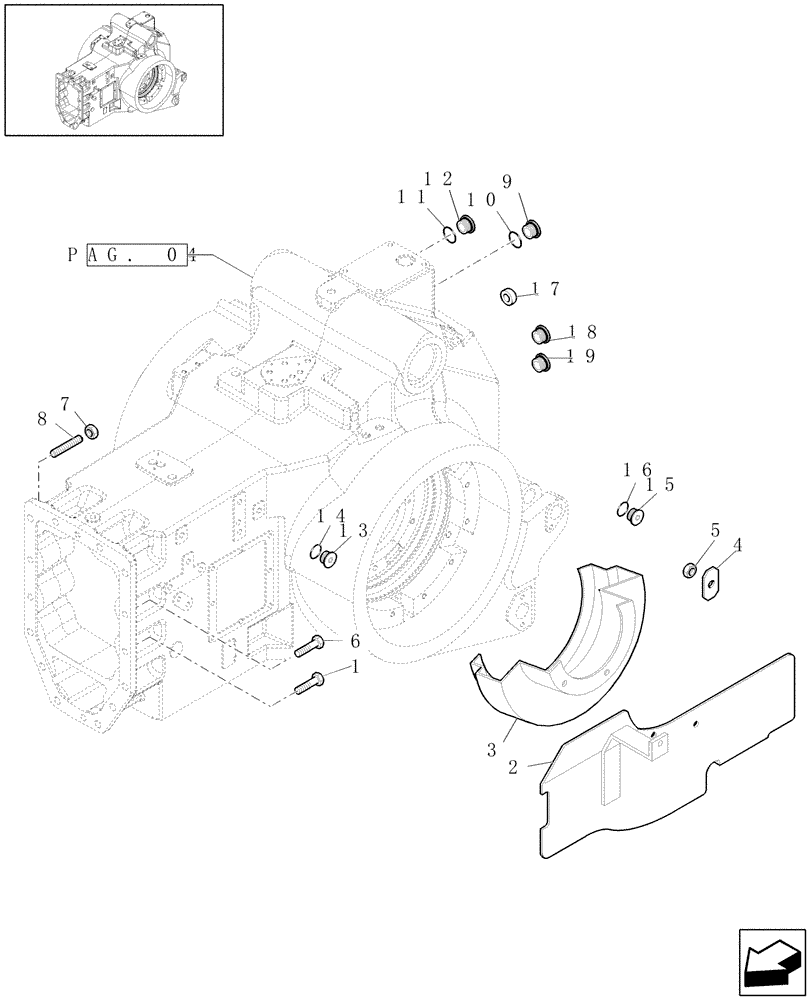

Запчасти Case IH PUMA 195 (1.21.0[06]) - CENTRAL HOUSING / TRANSMISSION BOX (03) - TRANSMISSION

1

15981034

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

10шт.

2

5196121

GUARD

1шт.

3

5198538

SHIELD

1шт.

4

14198700

LOCKING PLATE,M8

2шт.

5

16100824

NUT,M8, Cl 10

4шт.

6

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

3шт.

7

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

8

11797534

STUD

1шт.

9

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

83957506

PLUG,3/4"

1шт.

13

11903111

PLUG,M10 x 1.25 x 11, Cl5.8

1шт.

14

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

15

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.

16

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

17

14328701

PLUG,M20, Tapered

2шт.

18

5111228

PLUG,16.5mm ID x 20mm OD x 11mm Thk

1шт.

19

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

1шт.
