Запчасти Case IH PUMA 195 (1.21.0[01]) - CLUTCH BOX ASSY (03) - TRANSMISSION

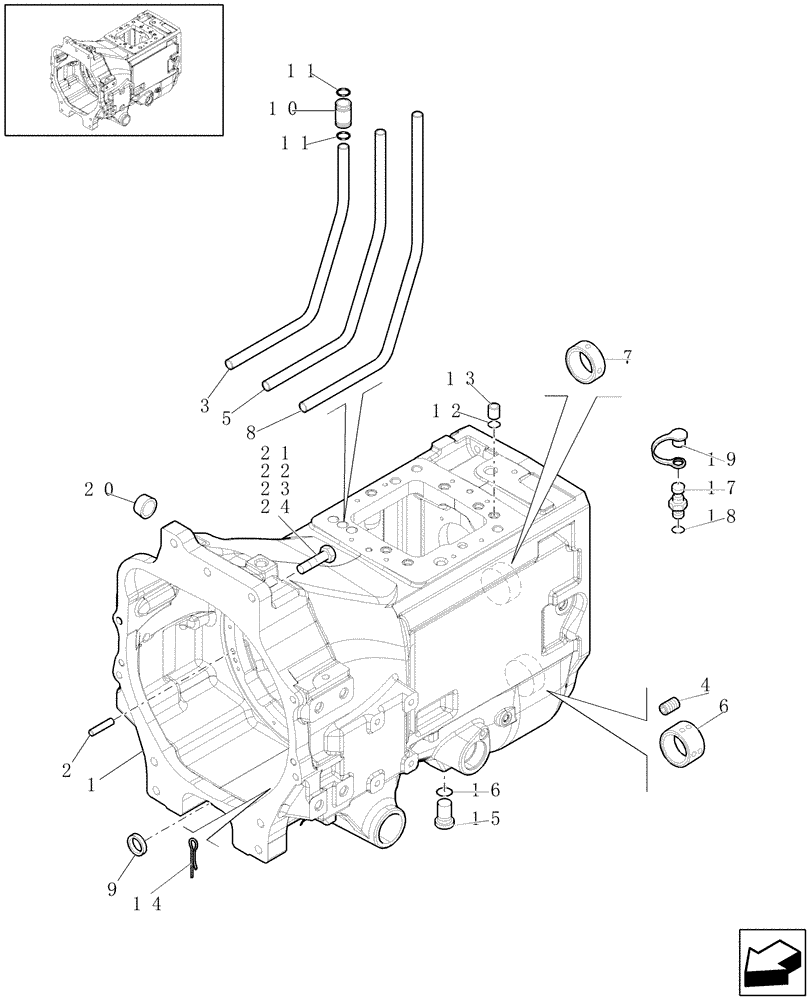

Схема запчастей Case IH PUMA 195 - (1.21.0[01]) - CLUTCH BOX ASSY (03) - TRANSMISSION
3
19
21
5
14
12
9
23
7
20
4
11
1
2
10
17
22
15
6
24
16
11
18
8
13

Артикул

Название

Примечание

Количество

1

47137508

TRANSMISSION HOUSING

, Serial Range: -C6028

1шт.

For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

1

87741867

TRANSMISSION HOUSING

, Start Serial: D6028

1шт.

For PUMA165, PUMA180, PUMA 195 Models

1шт.

1

87378891

TRANSMISSION HOUSING

, Serial Range: -C6028

1шт.

For PUMA 210 Model

1шт.

1

87743325

TRANSMISSION HOUSING

, Start Serial: D6028

2шт.

For PUMA 210 Model

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

10 x 15

2шт.

3

5186835

TUBE

For clutch D

1шт.

4

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

2шт.

5

5186834

TUBE

For clutch C

1шт.

6

5189017

BUSHING,90.02mm ID x 100.06mm OD x 52.5mm L

1шт.

7

5189016

BUSHING,90.02mm ID x 100.06mm OD x 28mm L

1шт.

8

5186836

TUBE

For clutch E

1шт.

9

5139075

PLUG,80.5mm

1шт.

Only For 2WD Models

1шт.

10

5198658

BUSHING

3шт.

11

5103230

O-RING,2.62mm Thk x 11.91mm ID

6шт.

12

14457281

O-RING,0.612" ID x 0.103" Width

6шт.

13

5178778

SPACER,11mm ID x 15mm OD x 15mm L

6шт.

14

10798204

COTTER PIN,M6.3 x 32

1шт.

15

5187246

PLUG

1шт.

16

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

17

5185423

COUPLING

Includes Ref. 18

4шт.

18

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

19

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

20

82037172

PLUG

8шт.

21

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

22

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

23

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

1шт.

24

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

4шт.

Выбрано товаров: 32
