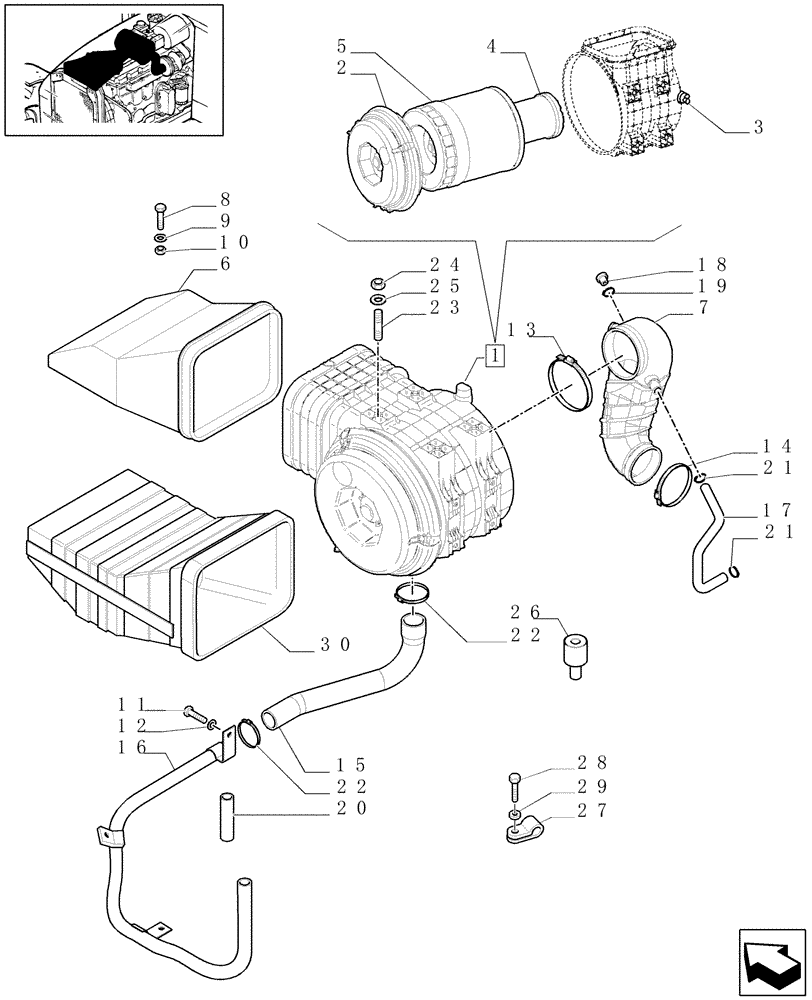

Запчасти Case IH PUMA 195 (1.19.1) - DRY AIR FILTER - PIPES (02) - ENGINE EQUIPMENT

1

87517568

AIR FILTER

Includes Ref. 2, 3, 4, 53

1шт.

2

87517152

COVER

1шт.

3

5138821

INDICATOR

1шт.

4

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

1шт.

5

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

1шт.

6

87392872

DUCT

, Serial Range: -C6466

1шт.

7

87304124

AIR DUCT

Includes Ref. 18, 19

1шт.

8

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

9

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

8шт.

10

15896211

NUT,M6, Cl 8

4шт.

11

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

12

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

13

82038745

CLAMP,130mm - 150mm

1шт.

14

82036460

HOSE CLAMP,110mm - 130mm, Worm Gear

1шт.

15

87399657

LARGE HOSE

HOSE,LARGE

1шт.

16

87590371

TUBE,32 mm OD x 714.4, 164.5 mm L

1шт.

17

87365771

HOSE,22.23 mm ID x 175.00 mm, SAE 30R2 Type 2

, Serial Range: -Z8BH03350

1шт.

17

87704032

HOSE,22.23 mm ID, SAE 30R2

, Start Serial: Z8BH03351

1шт.

18

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

19

13387470

HOSE CLAMP,31mm - 34mm

1шт.

20

82036395

FLEXIBLE HOSE,33.00 mm ID x 140.00 mm

1шт.

21

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2540

4шт.

22

82039347

HOSE CLAMP,35mm - 50mm, Worm Gear

2шт.

23

81870144

STUD,M10 x 32

4шт.

24

11701711

NUT,Hex, M10, Cl 8, ZND

4шт.

25

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

26

87344666

ISOLATOR

4шт.

27

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

28

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

29

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

30

84221366

DUCT

, Start Serial: D6466

1шт.
