Запчасти Case IH PUMA 195 (1.17.5) - RADIATOR DUCT AND SEALS (02) - ENGINE EQUIPMENT

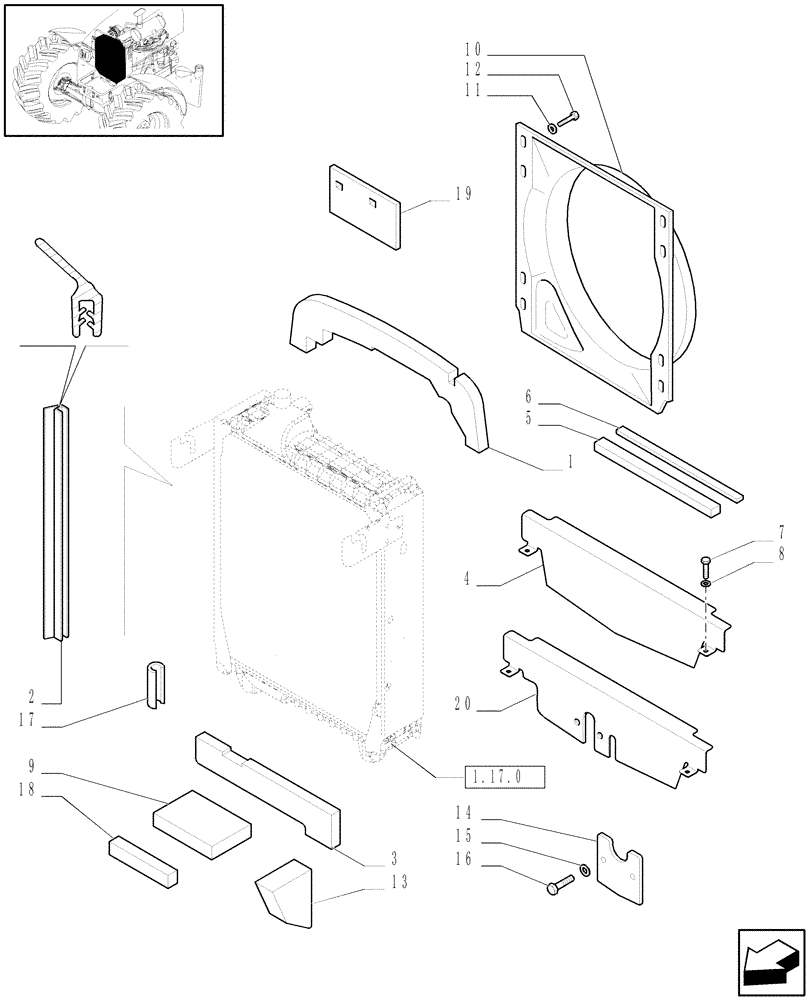

Схема запчастей Case IH PUMA 195 - (1.17.5) - RADIATOR DUCT AND SEALS (02) - ENGINE EQUIPMENT
12
13
5
8
20
18
2
17
3
19
14
15
7
4
11
6
16
9
10
1
1.17.0

Артикул

Название

Примечание

Количество

1

82038279

SEAL

1шт.

2

82039110

SEAL

2шт.

3

87380756

FOAM INSULATION

2шт.

4

82038426

DEFLECTOR

STD

1шт.

4

87612544

DEFLECTOR

, Serial Range: -Z7BH04219

1шт.

W/Equip. 087 - 088 Front HPL Less PTO Less Aux Coupler (4WD)

1шт.

4

87352448

DEFLECTOR

, Serial Range: -Z7BH04219

1шт.

W/Equip. 089 Front HPL With PTO Less Aux Coupler With Electronic Remotes (4WD)

1шт.

4

87353445

DEFLECTOR

1шт.

W/Equip. 090 Front HPL Less PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

4

87391133

DEFLECTOR

, Serial Range: -Z7BH04219

1шт.

W/Equip. 091 Front HPL With PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

4

87353442

DEFLECTOR

, Start Serial: Z7BH04220

1шт.

W/Equip. 087, 088, 089, 090, 091 4WD Models

1шт.

5

82038425

SEALING STRIP,680mm x 25mm x 10mm

1шт.

6

82038264

SEAL,510mm x 15mm x 5mm

510MM

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

82030145

FOAM INSULATION

2шт.

10

87565399

SHROUD

1шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

12

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.

13

82039468

INSULATOR

1шт.

W/Equip. 091 Front HPL With PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

W/Equip. 087 - 088 Front HPL Less PTO Less Aux Coupler (4WD)

1шт.

W/Equip. 090 Front HPL Less PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

W/Equip. 089 Front HPL With PTO Less Aux Coupler With Electronic Remotes (4WD)

1шт.

14

87390678

PLATE

1шт.

W/Equip. 091 Front HPL With PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

W/Equip. 089 Front HPL With PTO Less Aux Coupler With Electronic Remotes (4WD)

1шт.

15

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

2шт.

W/Equip. 091 Front HPL With PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

W/Equip. 089 Front HPL With PTO Less Aux Coupler With Electronic Remotes (4WD)

1шт.

16

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

W/Equip. 091 Front HPL With PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

W/Equip. 089 Front HPL With PTO Less Aux Coupler With Electronic Remotes (4WD)

1шт.

17

82015330

BUMPER

2шт.

W/Equip. 091 Front HPL With PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

18

87380755

FOAM INSULATION

1шт.

19

87563753

SEAL

1шт.

20

87701774

DEFLECTOR

, Start Serial: Z7BH04220

1шт.

W/Equip. 091 Front HPL With PTO With mid mount Remotes With Aux Coupler (4WD)

1шт.

20

87701772

DEFLECTOR

, Start Serial: Z7BH04220

1шт.

W/Equip. 089 Front HPL With PTO Less Aux Coupler With Electronic Remotes (4WD)

1шт.

Выбрано товаров: 44
