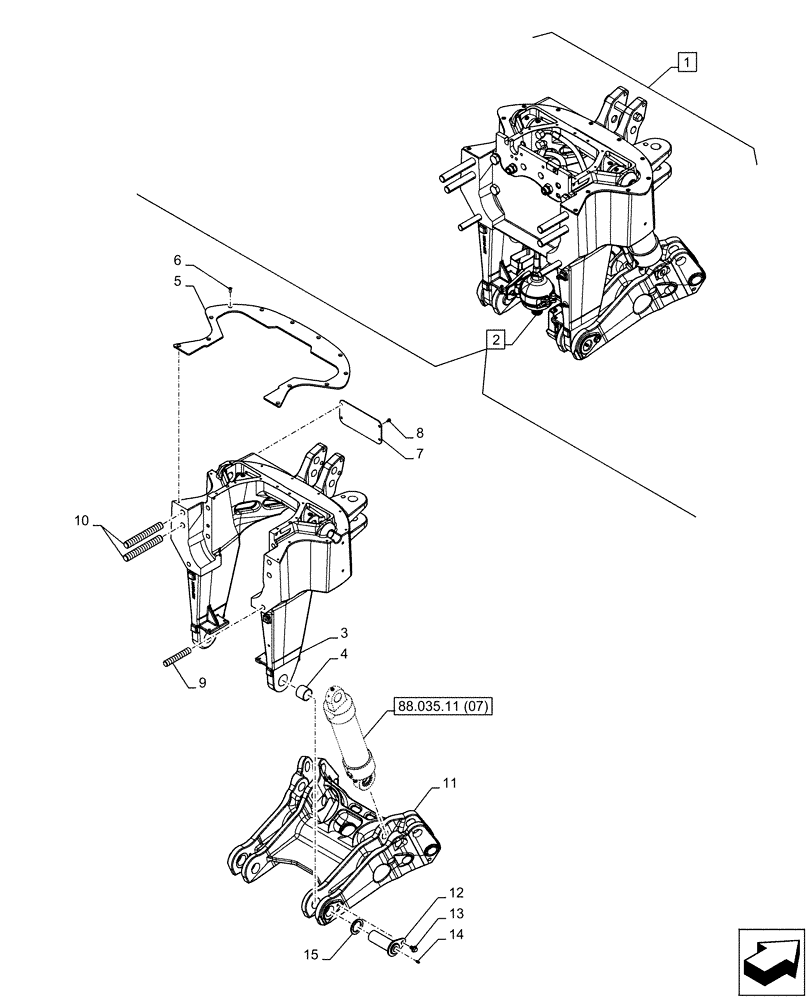

Запчасти Case IH PUMA 185 (88.035.11[01]) - DIA KIT - FRONT HPL FOR SUSPENDED AND STD AXLES, LESS PTO, LESS COUPLER - LIFTER, HOUSING & COVER (88) - ACCESSORIES

1

718062024

DIA KIT, TRACTOR

Front HPL for Suspended and STD Axles, Less PTO, Less Couplers, Contains Ref. 2-15

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84406892

HITCH

To see full DIA KIT composition look for all the figures where the DIA KIT P/N is shown, ASSY, Incl 3-15

1шт.

3

84470290

FRAME

1шт.

4

84423408

BUSHING

2шт.

5

84484439

PLATE

1шт.

6

14441321

HEX SOC SCREW,M6 x 16mm, Cl 8.8

12шт.

7

84410194

PLATE

1шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

84473078

STUD

2шт.

10

84473072

STUD

4шт.

11

84470407

FRAME

1шт.

12

84473075

PIN

LH

1шт.

12

84372465

PIN

RH

1шт.

13

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

2шт.

14

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

15

84485800

SPACER,40.5mm ID x 56.5mm OD x 4.5mm L

1шт.
