Запчасти Case IH PUMA 185 (88.035.10) - DIA KIT - FRONT HPL - SOLENOID VALVE (88) - ACCESSORIES

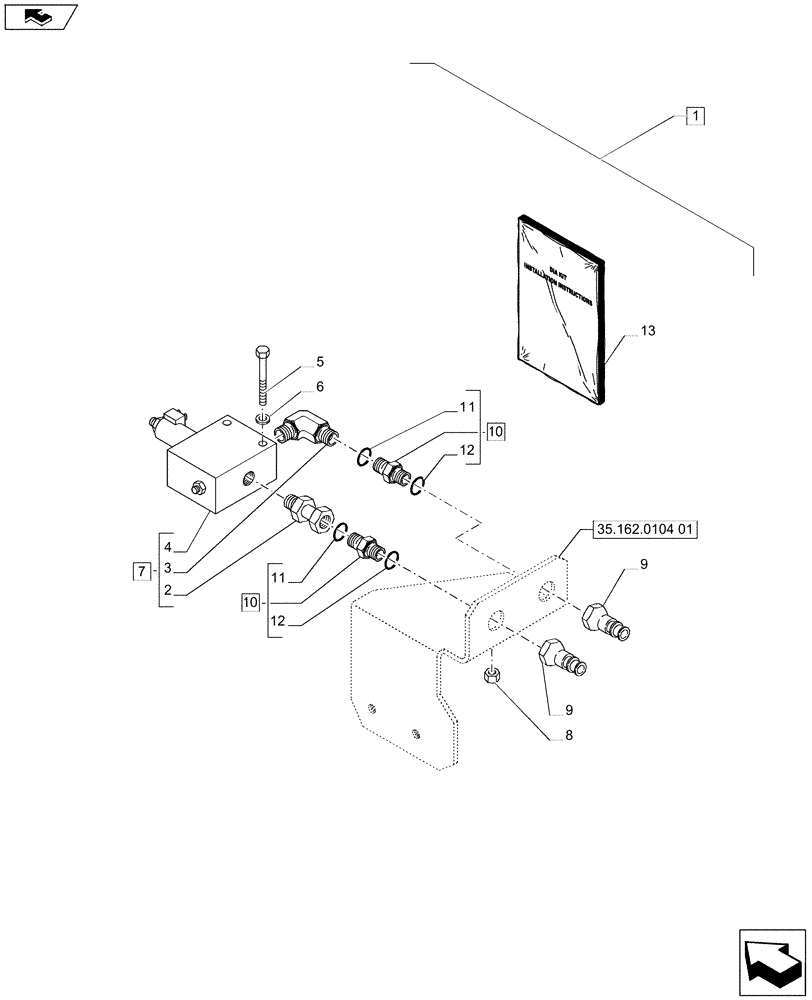

Схема запчастей Case IH PUMA 185 - (88.035.10) - DIA KIT - FRONT HPL - SOLENOID VALVE (88) - ACCESSORIES
2
6
9
13
5
1
1
7
10
1
9
8
home
35.162.0104 01
11
12
12
4
10
3

Артикул

Название

Примечание

Количество

1

710065014

DIA KIT, TRACTOR

Additional Fitting Kit for Front Linkage in Mechanical Remotes Vehicles, Contains Ref. 2-12 Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87312047

HYD CONNECTOR

1шт.

3

87312050

HYD CONNECTOR

1шт.

4

5141295

SOLENOID VALVE

1шт.

5

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

7

87329928

HYDRAULIC VALVE

Contains Ref. 2-4

1шт.

8

15896211

NUT,M6, Cl 8

2шт.

9

83972881

COUPLING

2шт.

10

5185524

HYD CONNECTOR

Contains Ref. 11-12

2шт.

11

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

13

84181631

INSTRUCTION

1шт.

Выбрано товаров: 14
