Запчасти Case IH PUMA 185 (55.418.0901[01]) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - SENSOR AND RELATED PARTS (VAR.743964) (55) - ELECTRICAL SYSTEMS

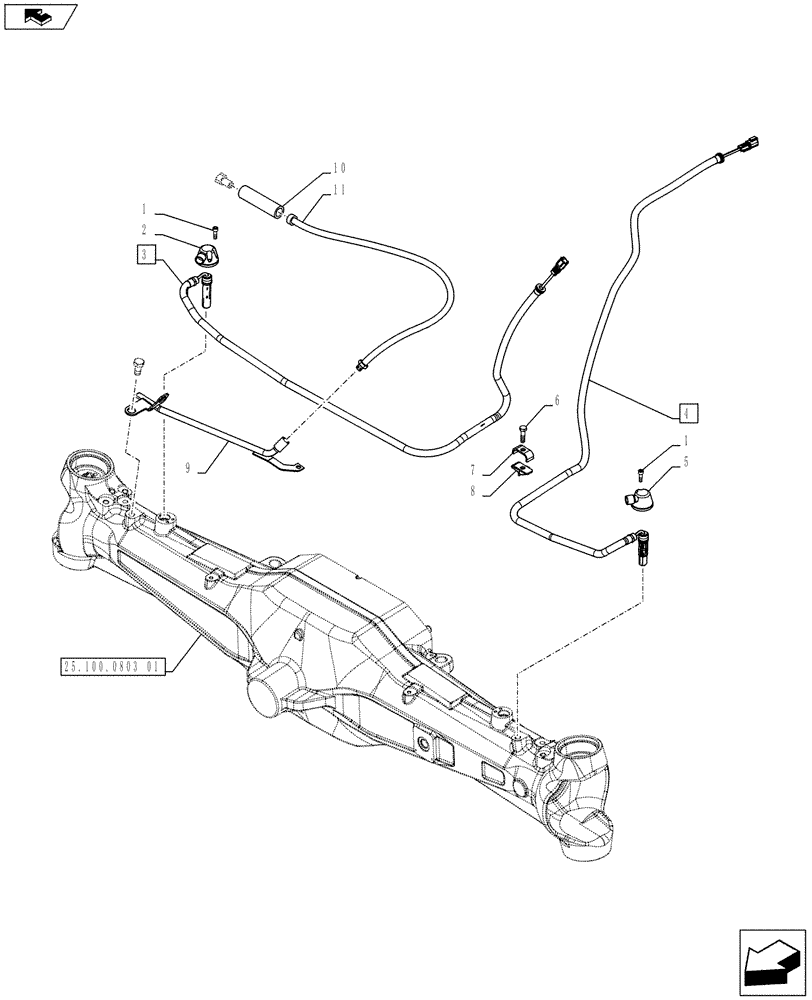

Схема запчастей Case IH PUMA 185 - (55.418.0901[01]) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - SENSOR AND RELATED PARTS (VAR.743964) (55) - ELECTRICAL SYSTEMS
3
4
9
2
8
5
7
10
11
1
1
25.100.0803 01
6
home

Артикул

Название

Примечание

Количество

1

14305324

HEX SOC SCREW,M6 x 20mm, Cl 8.8

M6 x 20 mm

4шт.

2

84529656

PROTECTION CAP

RH

1шт.

3

84534731

SENSOR

ASSY, Contains Ref. 2; RH

1шт.

4

84534735

SENSOR

ASSY, Contains Ref. 5; LH

1шт.

5

84529653

PROTECTION CAP

LH

1шт.

6

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

M8 x 30 mm

1шт.

7

84530333

BRACKET

1шт.

8

84530335

BRACKET

1шт.

9

84399004

TUBE

1шт.

10

87329095

HOSE PROTECTION

1шт.

11

87619680

FLEXIBLE SHEATH

1шт.

Выбрано товаров: 11
