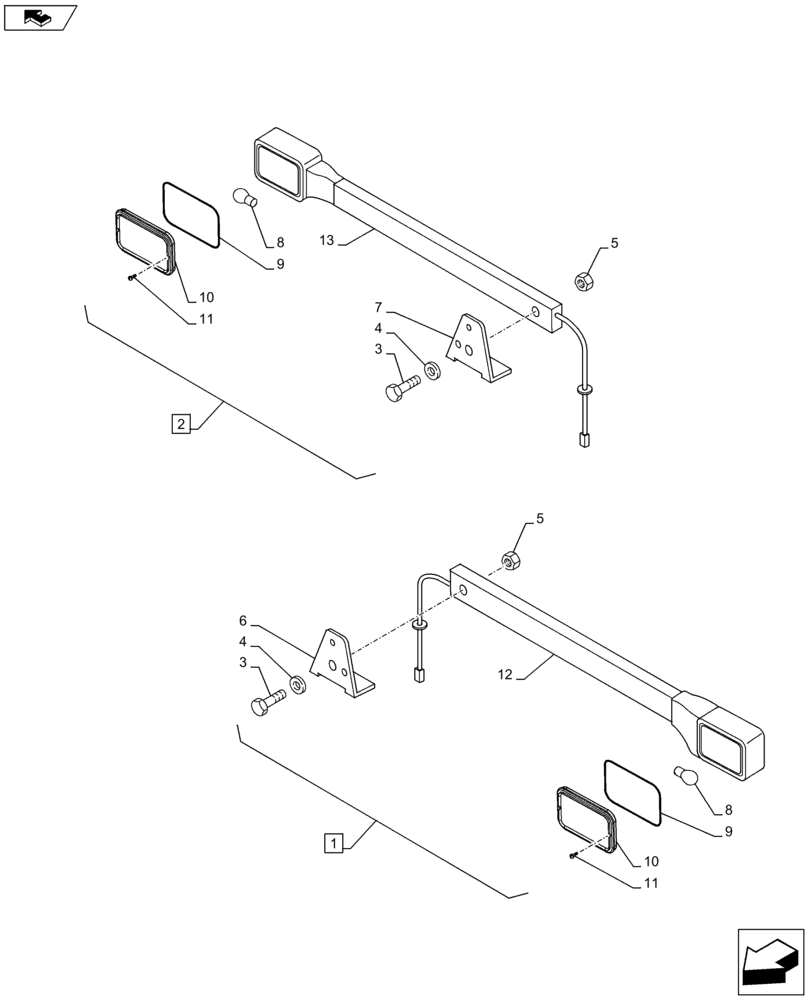

Запчасти Case IH PUMA 185 (55.404.0301) - EXTREMITY LIGHTS FOR NA OHIO - EXTREMITY LIGHTS (VAR.743089-728667 / 743632) (55) - ELECTRICAL SYSTEMS

1

82038970

SIDE LAMP ASSY

LH, Incl 3 - 6, 8 - 12

1шт.

2

82038971

SIDE LAMP ASSY

RH, Incl 3 - 5, 7 - 11, 13

1шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

5

15896211

NUT,M6, Cl 8

4шт.

6

87324714

BRACKET

1шт.

7

87324716

BRACKET

1шт.

8

529068

BULB,#1156, 12V, 21W

2шт.

9

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

2шт.

10

86576124

LENS

2шт.

11

NSS

NOT SOLD SEPARAT

Screw

4шт.

12

NSS

NOT SOLD SEPARAT

Lamp Support, LH, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Lamp Support, RH, Incl in 2

1шт.
