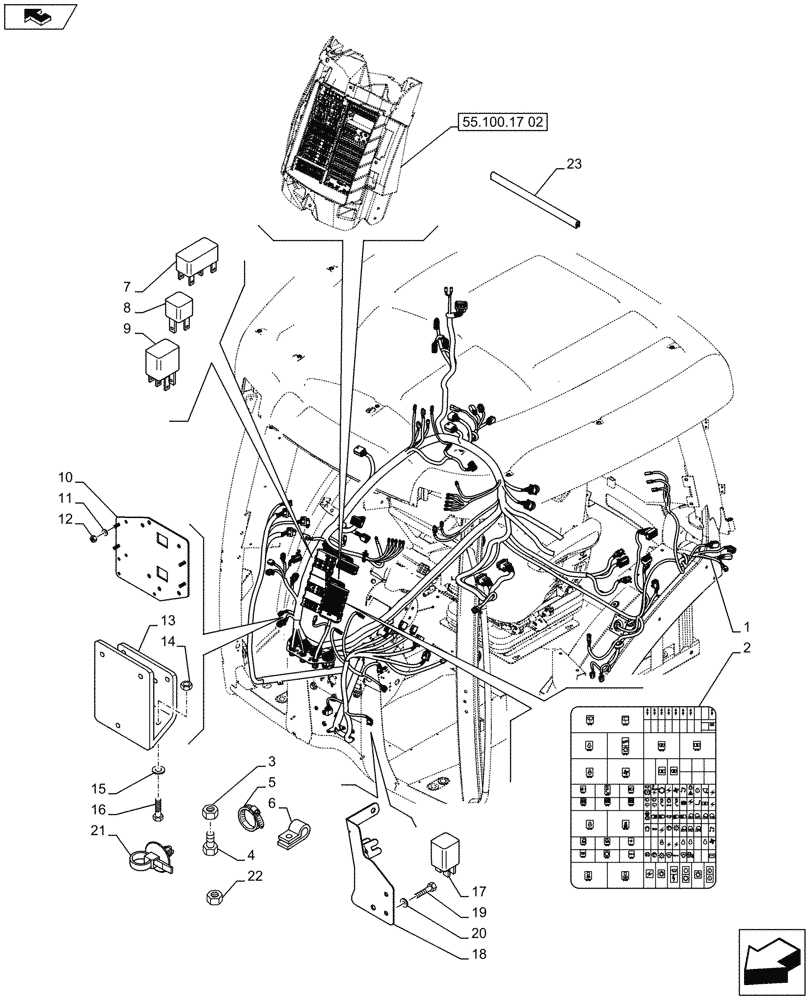

Запчасти Case IH PUMA 185 (55.100.17[01]) - CAB CABLE AND RELATIVE PARTS (55) - ELECTRICAL SYSTEMS

1

84339493

WIRE HARNESS

ASSY, Cab, Serial Range: -C7107

1шт.

See also Figure 55.100.17 (02), 55.100.17 (03), 55.100.17 (04), 55.100.17 (05), 55.100.17 (06)

1шт.

1

84358492

WIRE HARNESS

ASSY, Cab, Serial Range: D7107-C7106

1шт.

See also Figure 55.100.17 (02), 55.100.17 (03), 55.100.17 (04), 55.100.17 (05), 55.100.17 (06)

1шт.

1

47358680

WIRE HARNESS

ASSY, Cab, Start Serial: D7106

1шт.

See also Figure 55.100.17 (02), 55.100.17 (03A), 55.100.17 (04A), 55.100.17 (05A), 55.100.17 (06)

1шт.

2

84332580

DECAL

Fuse and Relay Box

1шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

, Serial Range: -C9023

2шт.

3

15896211

NUT,M6, Cl 8

, Start Serial: D9023

2шт.

4

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

, Serial Range: -C9023

2шт.

4

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

, Start Serial: D9023

2шт.

5

82001040

CABLE TIE,.19" x 11.5"

2шт.

5

82013031

CABLE TIE,193mm L

3шт.

5

14560287

CABLE TIE,207.00mm L

3шт.

5

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

200mm

2шт.

6

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

2шт.

Fast Steer, VAR.729636-743187 (Commercial Feature 743608)

1шт.

6

87547970

CLAMP,28.6mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

Standard Equipment

1шт.

6

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

87304226

RELAY,12V, Combined, Black

Wiper Timer

1шт.

8

82013124

RELAY,12V, 30A

1шт.

8

82030798

RELAY,12V, 70A

1шт.

9

82023238

RELAY,12V, 20A

, Serial Range: -C9023

1шт.

10

87325625

SUPPORT

Relay Mounting

1шт.

11

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

13

87314581

BRACKET

Module Mounting, Serial Range: -C9023

1шт.

13

47415938

BRACKET

, Start Serial: D9023

1шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

5шт.

15

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Serial Range: -C9023

3шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Start Serial: D9023

6шт.

16

412422

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

, Serial Range: -C9023

2шт.

17

82017871

RELAY,12V, 20A

, Serial Range: -C9023

2шт.

18

87597230

SUPPORT

1шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

19

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

, Serial Range: -C9023

2шт.

20

14496404

WASHER,M6 x 12 x 2 Thk

, Start Serial: D9023

2шт.

21

82033028

CABLE TIE,170mm L

, Serial Range: -C9023

1шт.

22

83958007

NUT,M8, G8

, Serial Range: -C9023

1шт.

23

87617359

PROTECTOR

, Serial Range: -C7166

1шт.

23

84545777

PROTECTION STRIP

, Start Serial: D7166

2шт.
