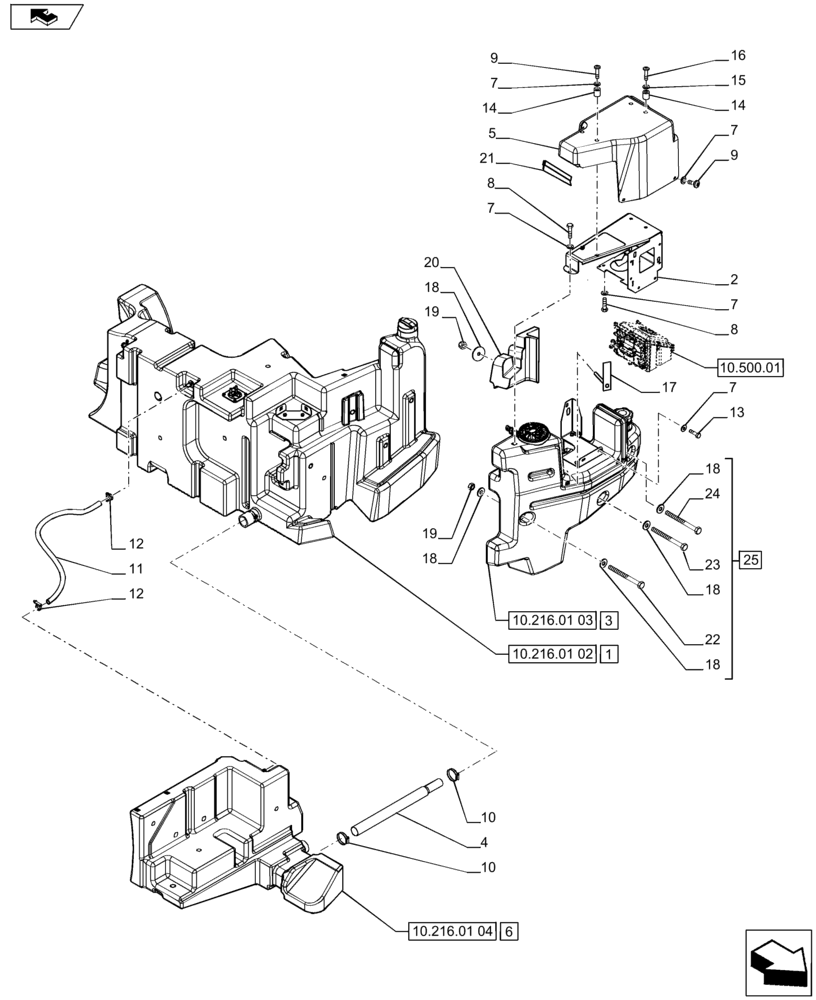

Запчасти Case IH PUMA 185 (10.216.01[01]) - FUEL TANK AND RELATED PARTS (10) - ENGINE

1

84364721

FUEL TANK

ASSY

1шт.

2

84362482

BRACKET

1шт.

3

84364734

EXHAUST FLUID TANK,56L

ADBLUE

1шт.

4

87312660

TUBE,38, 48 mm OD x 483, 100 mm L

1шт.

5

84362404

COVER

1шт.

6

84363299

FUEL TANK

ASSY

1шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

9

84353724

SCREW,Pozidriv Pan Hd, M8 x 20mm, Cl 4.8, Full Thd

3шт.

10

82036462

CLAMP,50mm - 70mm

2шт.

11

82023229

TUBE,15.90 mm ID x 640.00 mm

1шт.

12

82039343

HOSE CLAMP,16mm - 27mm

2шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

14

84358644

STOP DEVICE

4шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

16

84361275

SCREW,Pozidriv Pan Hd, M8 x 30mm, Cl 4.8, Full Thd

4шт.

17

84385014

PLATE

1шт.

18

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

7шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

20

84385401

FOAM

1шт.

21

84388543

SEAL PROTECTION,169mm L

1шт.

22

2186540

BOLT,Hex, M10 x 215mm, Cl 10.9

1шт.

23

2142046

BOLT,Hex, M10 x 1.5 x 290mm, Cl 10.9

1шт.

24

84077701

BOLT,Hex, M10 x 250mm, Cl 8.8, Full Thd

1шт.

25

84364739

FUEL TANK

ASSY, Contains Ref. 1, 3, 18-19, 22 - 24

1шт.
