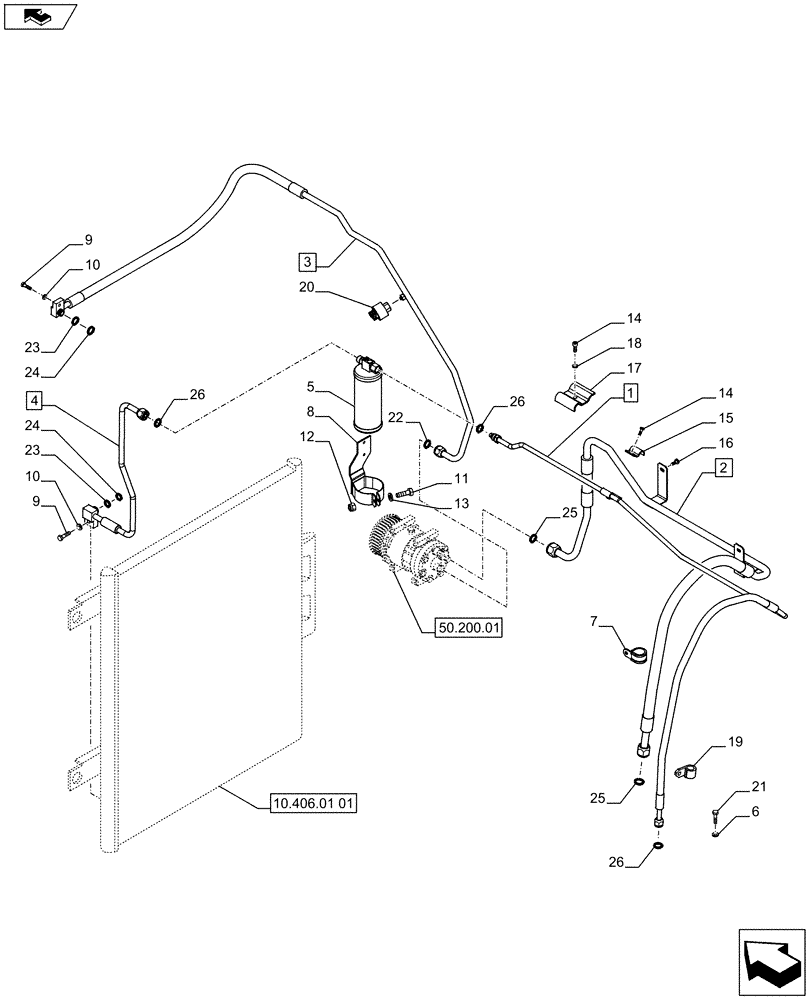

Запчасти Case IH PUMA 185 (50.200.02[01]) - AIR CONDITIONING SYSTEM PIPES - C7381 (50) - CAB CLIMATE CONTROL

1

84338275

PIPE

ASSY, Contains Ref. 26 (Qty 2), Serial Range: -C7161

1шт.

1

84496229

HYD TUBE

ASSY, Contains Ref. 26 (Qty 2), Start Serial: D7161

1шт.

2

84344493

PIPE ASSY.

ASSY, Contains Ref. 25

1шт.

3

84338279

PIPE

ASSY, Contains Ref. 22 - 24 (Qty 1), Serial Range: -C7161

1шт.

3

84493142

A/C HOSE

ASSY, Contains Ref. 22 - 24 (Qty 1), Start Serial: D7161

1шт.

4

84309195

TUBE

ASSY, Contains Ref. 23, 24, 26 (Qty 1), Serial Range: -C7161

1шт.

4

84493137

HYD TUBE

ASSY, Contains Ref. 23, 24, 26 (Qty 1), Start Serial: D7161

1шт.

5

87343822

RECEIVER-DRYER

1шт.

6

14498824

WASHER

1шт.

7

87331631

CLAMP

1шт.

8

87750158

BRACKET

1шт.

9

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

5шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

5шт.

11

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

12

12574211

NUT,M6 x 1, Cl 8

1шт.

13

10516474

LOCK WASHER

1шт.

14

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

3шт.

15

84233849

BRACKET

1шт.

16

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

17

87653304

BRACKET

1шт.

18

10615279

LOCK WASHER,M4, Serr

4шт.

19

82013721

CLIP

1шт.

20

84233818

PRESSURE SWITCH

1шт.

21

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.

22

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

23

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

24

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

25

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

26

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

3шт.
