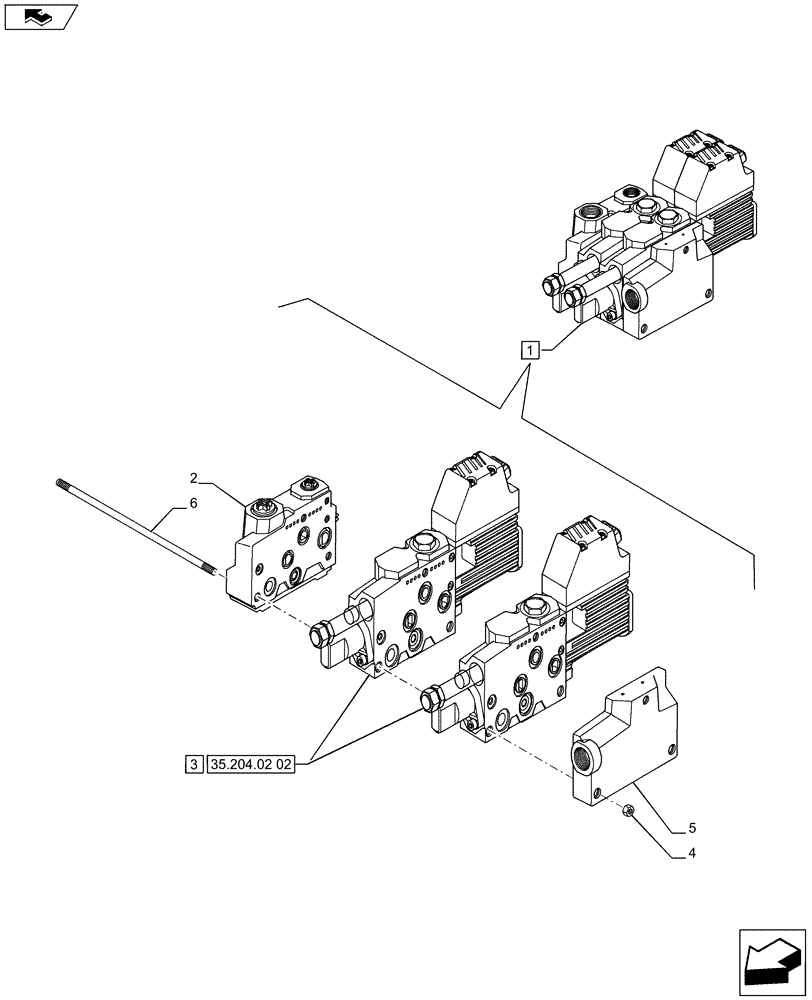

Запчасти Case IH PUMA 185 (35.204.02[01]) - ELECTRONIC MID MOUNTED VALVES 2 SLICE - CONTROL VALVE - BREAKDOWN (VAR.728108) (35) - HYDRAULIC SYSTEMS

1

84214464

CONTROL VALVE

Contains Ref. 2-6

1шт.

1

84214464R

REMAN-HYD VALVE

Reman Valve Assy -- Contains Ref. 2-6

1шт.

1

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

2

87744557

MANIFOLD

1шт.

3

84214463

ELECTRO-VALVE

2шт.

84214463R

REMAN-HYD VALVE

PUMA 170, PUMA 185, PUMA 200, PUMA 215, PUMA 230 all (12/10-)

2шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

3

84151263

ELECTRO-VALVE

1шт.

3

84151263R

REMAN-HYD VALVE

Reman for New PN 84151263

1шт.

3

84151263C

CORE-VALVE HYD

Return Number

1шт.

84214463R

REMAN-HYD VALVE

PUMA 170, PUMA 185, PUMA 200, PUMA 215 all (12/10-), Reman For New P/N 84151263

1шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

Parts Shown Are Also Available in DIA Kit 718756014

1шт.

4

5195169

NUT,M8

3шт.

5

87750999

END PLATE

HYDRAULIC VALVE

1шт.

6

87751799

TRUSS ROD

3шт.

6

87520006

TIE-ROD

3шт.

Parts Shown Are Also Available in DIA Kit 718756014

1шт.

6

87371933

TIE-ROD

3шт.

Parts Shown Are Also Available in DIA Kit 718756014

1шт.
