Запчасти Case IH PUMA 185 (35.204.0108[01]) - 4 REMOTE CONTROL VALVES, MECHANICAL (VAR.720669) (35) - HYDRAULIC SYSTEMS

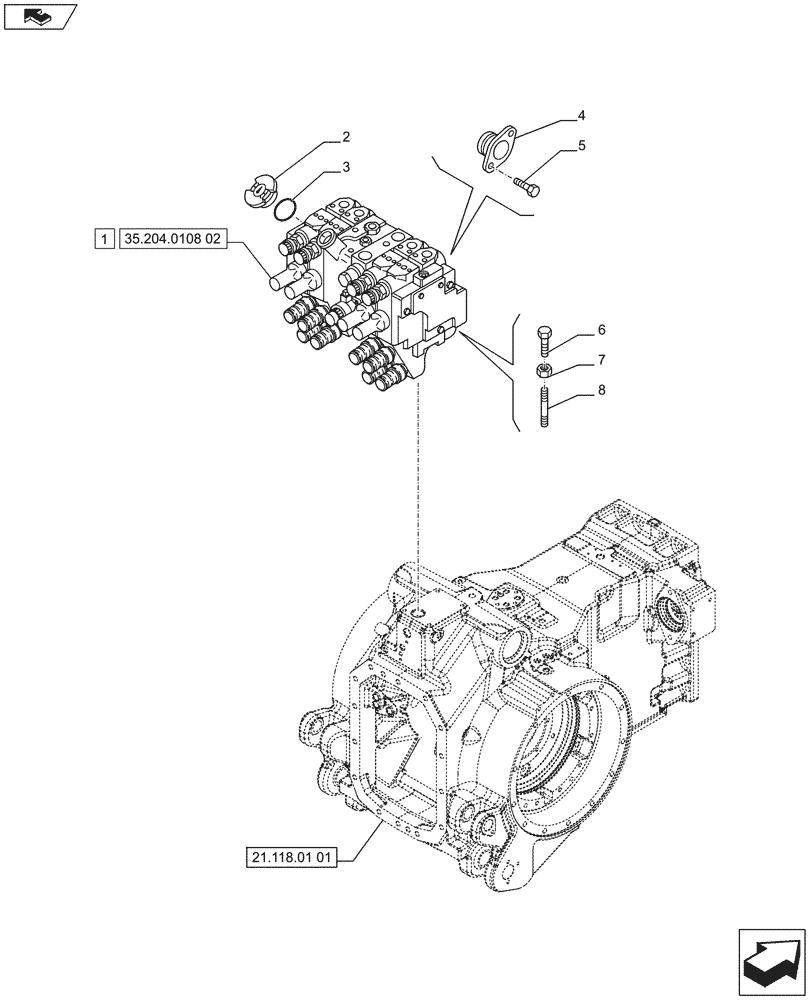

Схема запчастей Case IH PUMA 185 - (35.204.0108[01]) - 4 REMOTE CONTROL VALVES, MECHANICAL (VAR.720669) (35) - HYDRAULIC SYSTEMS
21.118.01 01
home
5
7
3
8
1
2
6
4
35.204.0108 02

Артикул

Название

Примечание

Количество

1

87311373

CONTROL VALVE

ASSY, without Power Beyond

1шт.

2

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

3

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

4

5189606

SUPPORT

4шт.

5

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

8шт.

6

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

7

12164711

NUT,M10 x 1.25, Cl 8

2шт.

8

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.

Выбрано товаров: 8
