Запчасти Case IH PUMA 185 (35.204.0105[02]) - 5 REMOTE CONTROL VALVES, ELECTRONIC, W/ POWER BEYOND COUPLERS, COMPONENTS (VAR.743425-743828 / 743669) (35) - HYDRAULIC SYSTEMS

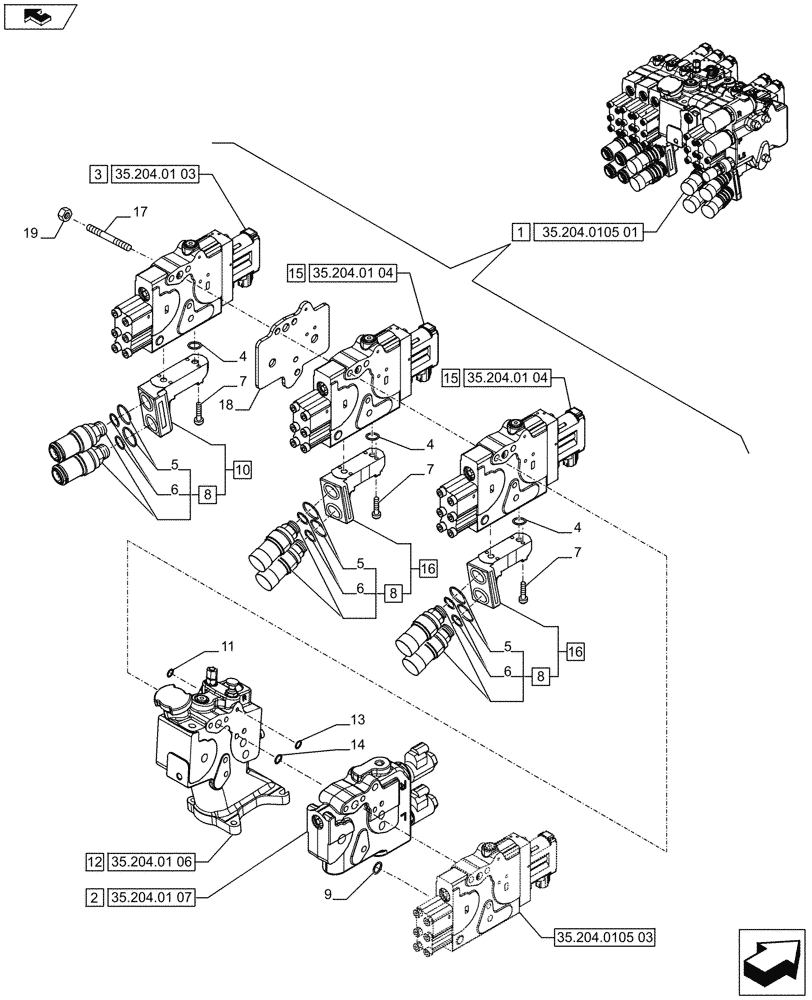

Схема запчастей Case IH PUMA 185 - (35.204.0105[02]) - 5 REMOTE CONTROL VALVES, ELECTRONIC, W/ POWER BEYOND COUPLERS, COMPONENTS (VAR.743425-743828 / 743669) (35) - HYDRAULIC SYSTEMS
35.204.0105 03
6
home
7
2
5
12
9
13
8
15
6
16
16
19
7
5
10
4
6
14
4
18
8
17
8
1
3
7
4
15
11
5
35.204.0105 01
35.204.01 04
35.204.01 04
35.204.01 06
35.204.01 07
35.204.01 03

Артикул

Название

Примечание

Количество

1

87354271

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 19, Serial Range: -C7417

1шт.

See also Figure 35.204.0105 (03)

1шт.

1

47592933

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 19, Serial Range: D7417-C7418

1шт.

See also Figure 35.204.0105 (03)

1шт.

1

47594448

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 19, Start Serial: D7418

1шт.

See also Figure 35.204.0105 (03)

1шт.

2

87331245

VALVE SECTION

ASSY, Hitch Valve, Serial Range: -C7414

1шт.

2

87331245R

REMAN-HYD VALVE

Hitch Valve

1шт.

2

87331245C

CORE-VALVE HYD

Return Number

1шт.

2

47434177

HYD VALVE SECTION

ASSY, Hitch Valve, Start Serial: D7414

1шт.

2

47434177R

REMAN-HYD VALVE

Hitch Valve

1шт.

2

47434177C

CORE-VALVE HYD

Return Number

1шт.

3

87330318

HYD VALVE SECTION

ASSY, Auxiliary, Left, Serial Range: -C7414

1шт.

3

87330318R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

3

87330318C

CORE-VALVE HYD

Return Number

1шт.

3

47434172

HYD VALVE SECTION

ASSY, Auxiliary, Left, Serial Range: D7414-C7417

1шт.

3

47434172R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

3

47434172C

CORE-VALVE HYD

Return Number

1шт.

3

47592925

HYDRAULIC VALVE

ASSY, Auxiliary, Left, Serial Range: D7417-C7418

1шт.

3

47592925R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

3

47592925C

CORE-VALVE HYD

Return Number

1шт.

3

47594400

HYDRAULIC VALVE

ASSY, Auxiliary, Left Low Leak, Start Serial: D7418

1шт.

4

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

6шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

6

87382012

SEAL KIT

6шт.

7

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

12шт.

8

87381944

COUPLING, QUICK, FEM

ASSY, Incl 5, 6

4шт.

9

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

1шт.

10

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, ASSY, Incl 8

1шт.

11

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

6шт.

12

87555868

MANIFOLD VALVE

ASSY, Inlet/Outlet

1шт.

13

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

18шт.

14

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

25шт.

15

87325955

HYD VALVE SECTION

ASSY, Auxiliary, Main, Serial Range: -C7414

2шт.

15

87325955R

REMAN-HYD VALVE

Auxiliary, Main

2шт.

15

87325955C

CORE-VALVE HYD

Return Number

2шт.

15

47434171

HYD VALVE SECTION

ASSY, Auxiliary, Main, Serial Range: D7414-C7417

2шт.

15

47434171R

REMAN-HYD VALVE

Auxiliary, Main

2шт.

15

47434171C

CORE-VALVE HYD

Return Number

2шт.

15

47592924

VALVE

ASSY, Auxiliary, Main, Serial Range: D7417-C7418

2шт.

15

47592924R

REMAN-HYD VALVE

Auxiliary, Main

2шт.

15

47592924C

CORE-VALVE HYD

Return Number

2шт.

15

47594399

HYDRAULIC VALVE

ASSY, Auxiliary, Main Low Leak, Start Serial: D7418

2шт.

16

87596458

HYDRAULIC MANIFOLD

ASSY, Incl 8

2шт.

17

87604618

STUD,M12 x 1.75 x 185mm

3шт.

18

87340783

PLATE

, Serial Range: -C7414

1шт.

18

84539946

PLATE

, Start Serial: D7414

1шт.

19

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

Выбрано товаров: 48
