Запчасти Case IH PUMA 185 (35.204.0101[03]) - 3 REMOTE CONTROL VALVES, ELECTRONIC, W/ POWER BEYOND COUPLERS, COMPONENTS (VAR.720683-743826) (35) - HYDRAULIC SYSTEMS

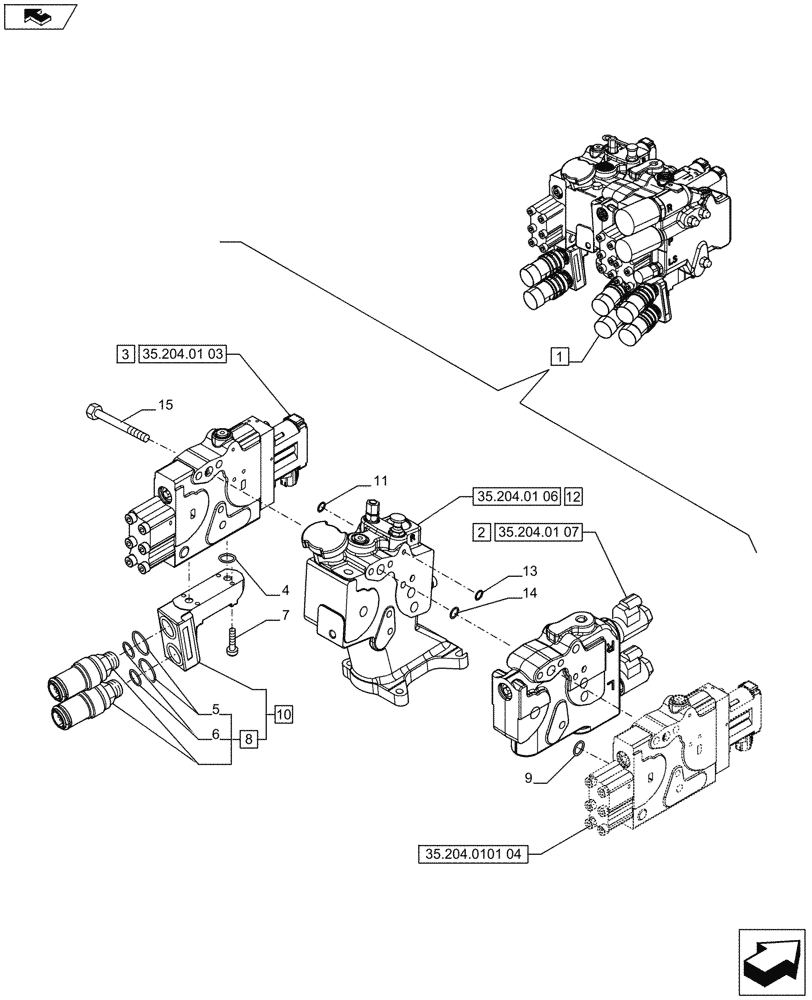

Схема запчастей Case IH PUMA 185 - (35.204.0101[03]) - 3 REMOTE CONTROL VALVES, ELECTRONIC, W/ POWER BEYOND COUPLERS, COMPONENTS (VAR.720683-743826) (35) - HYDRAULIC SYSTEMS
35.204.01 03
home
9
10
1
14
7
5
12
3
4
15
13
8
2
6
11
35.204.01 06
35.204.0101 04
35.204.01 07

Артикул

Название

Примечание

Количество

1

87582247

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 15, Serial Range: -C7417

1шт.

See also Figure 35.204.0101 (04)

1шт.

1

47592931

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 15, Serial Range: D7417-C7418

1шт.

See also Figure 35.204.0101 (04)

1шт.

1

47594446

CONTROL VALVE

ASSY, with Power Beyond, Incl 2 - 15, Start Serial: D7418

1шт.

See also Figure 35.204.0101 (04)

1шт.

2

87331245

VALVE SECTION

ASSY, Hitch Valve, Serial Range: -C7414

1шт.

2

87331245R

REMAN-HYD VALVE

Hitch Valve

1шт.

2

87331245C

CORE-VALVE HYD

Return Number

1шт.

2

47434177

HYD VALVE SECTION

ASSY, Hitch Valve, Start Serial: D7414

1шт.

2

47434177R

REMAN-HYD VALVE

Hitch Valve

1шт.

2

47434177C

CORE-VALVE HYD

Return Number

1шт.

3

87330318

HYD VALVE SECTION

ASSY, Auxiliary, Left, Serial Range: -C7414

1шт.

3

87330318R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

3

87330318C

CORE-VALVE HYD

Return Number

1шт.

3

47434172

HYD VALVE SECTION

ASSY, Auxiliary, Left, Serial Range: D7414-C7417

1шт.

3

47434172R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

3

47434172C

CORE-VALVE HYD

Return Number

1шт.

3

47592925

HYDRAULIC VALVE

ASSY, Auxiliary, Left, Serial Range: D7417-C7418

1шт.

3

47592925R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

3

47592925C

CORE-VALVE HYD

Return Number

1шт.

3

47594400

HYDRAULIC VALVE

ASSY, Auxiliary, Left Low Leak, Start Serial: D7418

1шт.

4

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

2шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

6

87382012

SEAL KIT

2шт.

7

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

4шт.

8

87381944

COUPLING, QUICK, FEM

ASSY, Incl 5, 6

4шт.

9

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

1шт.

10

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, ASSY, Incl 8

1шт.

11

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

6шт.

12

87555868

MANIFOLD VALVE

ASSY, Inlet/Outlet

1шт.

13

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

9шт.

14

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

16шт.

15

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

3шт.

Выбрано товаров: 34
