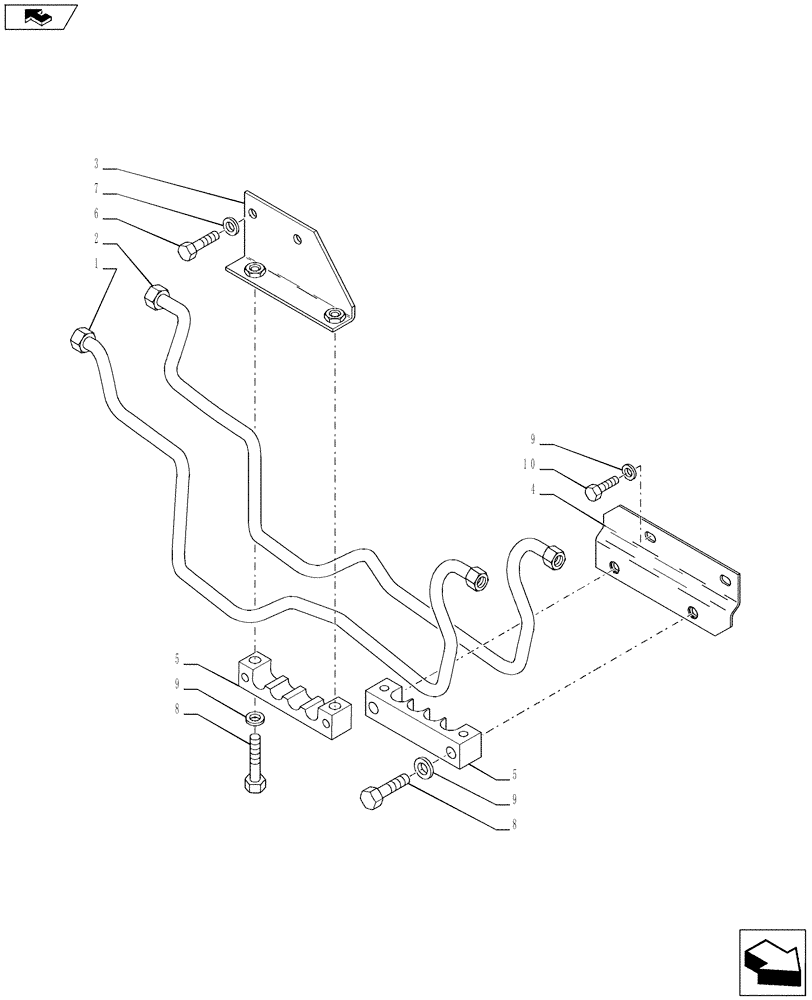

Запчасти Case IH PUMA 185 (35.162.04[02]) - FRONT HPL FOR MECHANICAL REMOTES LESS PTO LESS AUX. COUPLERS - TIRANTE E BRACCI (VAR.743481-743483 / 743765; VAR.743482-743484 / 743666) (35) - HYDRAULIC SYSTEMS

1

84279484

HYD TUBE

1шт.

Cylinder Lower

1шт.

2

84279485

HYD TUBE

1шт.

Cylinder Raise

1шт.

3

87346861

BRACKET

1шт.

4

87346863

BRACKET

1шт.

5

87579043

CLAMP,4 Hoses

2шт.

6

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

8

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

4шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
