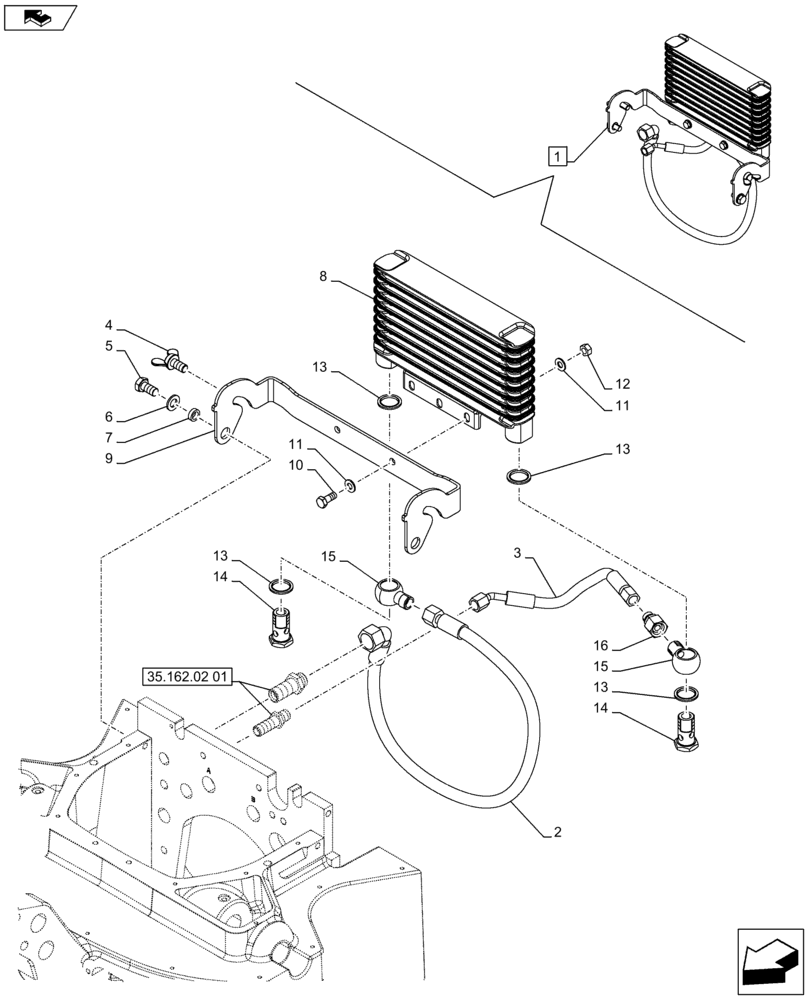

Запчасти Case IH PUMA 185 (35.162.02[04]) - FRONT HPL WITH PTO - COOLER ASSY - BREAKDOWN (VAR.743482-743484-743486 / 743666) (35) - HYDRAULIC SYSTEMS

1

84406888

COOLER ASSY.

ASSY, Contains Ref. 2 - 16

1шт.

2

84408389

HYD TUBE

Return Flow

1шт.

3

84408409

HOSE

Delivery

1шт.

4

84486618

SCREW

2шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

84408444

SPACER

2шт.

8

84123878

OIL COOLER

1шт.

9

84467125

BRACKET

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

9706690

NUT,M8 x 1.25, Cl 8

2шт.

13

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

14

87662204

BANJO BOLT

2шт.

15

84177636

HYD CONNECTOR

2шт.

16

84278114

FITTING

1шт.
