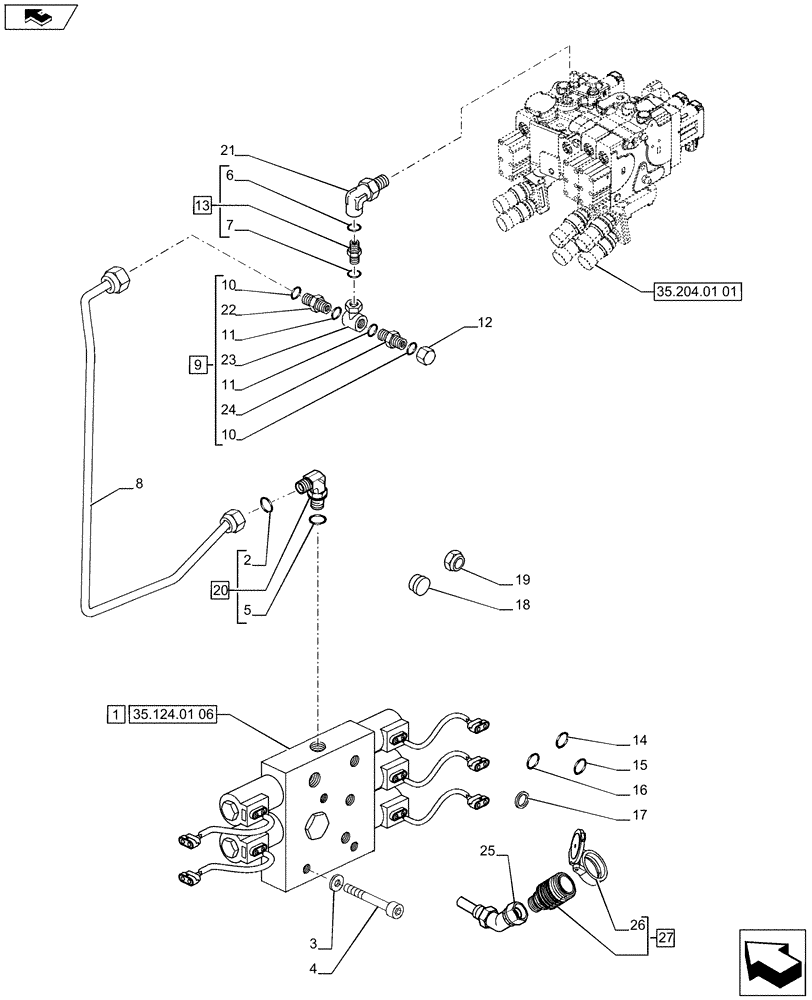

Запчасти Case IH PUMA 185 (35.124.01[05]) - RIGHT LIFT ROD AND TOP LINK HYDRAULIC ADJUST W/ELECTRONIC CONTROL - AUXILIARY DISTRIBUTOR (VAR.728484) (35) - HYDRAULIC SYSTEMS

1

87749159

SOLENOID VALVE,12V, 5.9 Ohm, 23W, 210 bar

ASSY

1шт.

2

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

07 x 301, 116

1шт.

3

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

4

14359321

HEX SOC SCREW,M8 x 65mm, Cl 8.8

8x65

3шт.

5

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2.2W x 9.3

1шт.

6

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

7

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

8

87735091

HYD TUBE

1шт.

9

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Contains Ref. 10,11,22-24

1шт.

10

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4

2шт.

11

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16

2шт.

12

5189973

PLUG

9/16"-18

1шт.

13

5185045

HYD CONNECTOR

9/16"-18;M12 x 1.5, Contains Ref. 6,7

1шт.

14

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

15

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

16

14458181

O-RING,29.82mm ID x 2.62" Width

1шт.

17

47127028

SEALING WASHER

16.5 x 22 x 1.5

1шт.

18

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

19

47123020

PLUG,Hex

13/16"

1шт.

19

83987627

CAP,1-14UN-2A

1шт.

20

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

Contains Ref. 24,25

1шт.

21

87736553

HYD CONNECTOR

1шт.

22

NSS

NOT SOLD SEPARAT

Fitting

1шт.

23

NSS

NOT SOLD SEPARAT

Valve

1шт.

24

NSS

NOT SOLD SEPARAT

Fitting

1шт.

25

84175578

PIPE FITTING

1шт.

Parts Shown Are Also Available in DIA Kit 719979014

1шт.

26

47056253

CAP,59.5mm L x 46mm D x 19.4mm Thk, Black

1шт.

Parts Shown Are Also Available in DIA Kit 719979014

1шт.

27

87301571

QUICK MALE COUPLING,M22 x 1.5

1шт.

Parts Shown Are Also Available in DIA Kit 719979014

1шт.
