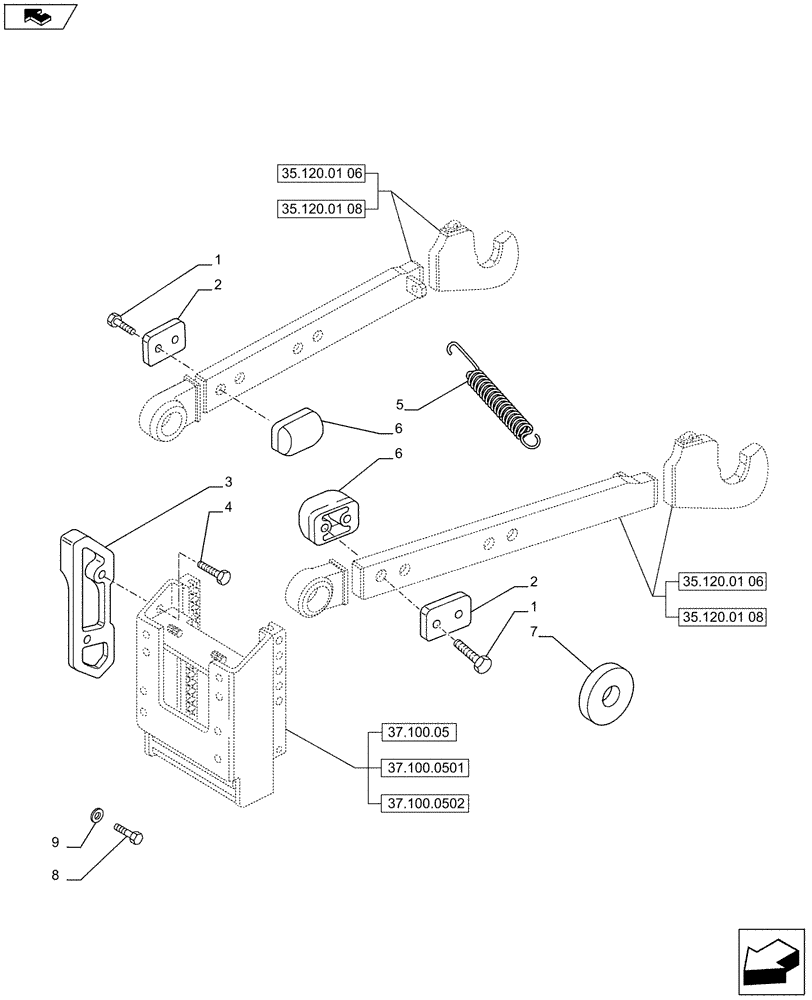

Запчасти Case IH PUMA 185 (35.120.0102) - SWAY BLOCK STABILIZERS (VAR.720901; VAR.744457-744458/743100) (35) - HYDRAULIC SYSTEMS

1

87333771

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

16 x 1.5 x 95

4шт.

2

87332334

PLATE

15mm thick

2шт.

2

87332350

PLATE

4mm thick

2шт.

2

87332342

PLATE

23mm thick

2шт.

3

47125870

TRAVEL LIMITER

RH

1шт.

3

47125871

TRAVEL LIMITER

LH

1шт.

4

11376224

BOLT,Hex, M16 x 1.5 x 35, 8.8, Full Thd

, Serial Range: -C7217

4шт.

5

4959776

SPRING,33mm OD x 400mm L

D=33 DW=3 L=400

1шт.

6

87712866

PLATE

2шт.

7

87305285

SPACER

2шт.

8

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

, Start Serial: D7217

4шт.

9

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.
