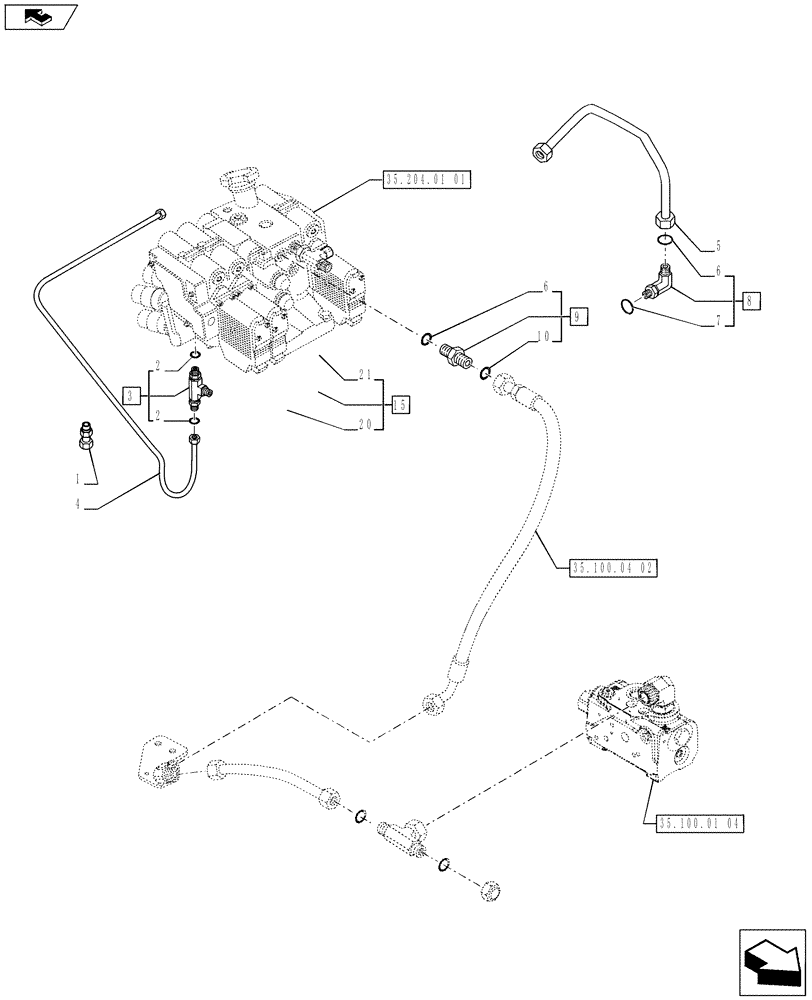

Запчасти Case IH PUMA 185 (35.100.04[03]) - RIGHT LIFT ROD AND TOP LINK HYDRAULIC - LIFTER LINES - C7091 (VAR.720463-728212-728484-720819) (35) - HYDRAULIC SYSTEMS

1

47136376

HYD CONNECTOR

1шт.

2

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

3

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Contains Ref. 2

1шт.

4

87316456

PIPE

1шт.

Only for VAR.728484

1шт.

5

87316343

PIPE

1шт.

Only for VAR.728484 (only for Models with Mecc. Remotes) and VAR.720463-728212

1шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

8

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Contains Ref. 5,7

1шт.

9

5197273

HYD CONNECTOR,1' 3/16-12 x 83.6mm

Contains Ref. 6,10

1шт.

Only for VAR.728484

1шт.

10

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.
