Запчасти Case IH PUMA 185 (35.100.01[01]) - HYDRAULIC PUMP - OIL FILTER (VAR.729004-728481 / 743616) (35) - HYDRAULIC SYSTEMS

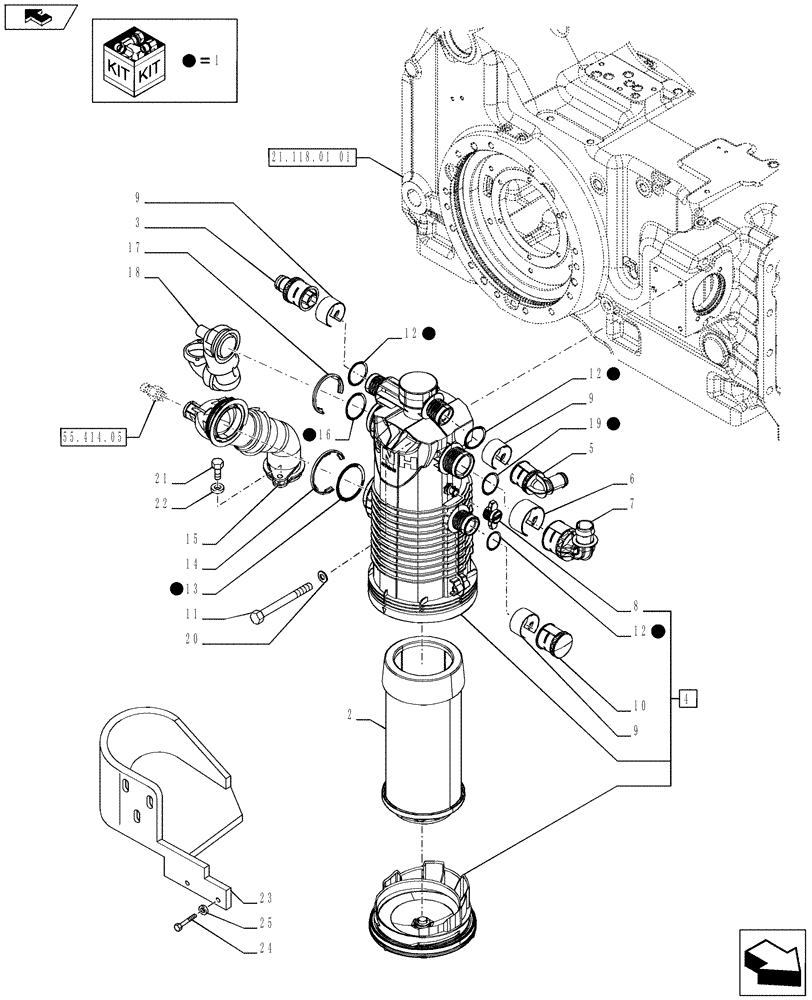

Схема запчастей Case IH PUMA 185 - (35.100.01[01]) - HYDRAULIC PUMP - OIL FILTER (VAR.729004-728481 / 743616) (35) - HYDRAULIC SYSTEMS
1
18
10
21
22
1
1
4
1
15
13
14
20
12
1
17
9
7
1
19
8
12
2
11
9
1
12
9
16
3
5
21.118.01 01
home
55.414.05
1
24
25
6
23

Артикул

Название

Примечание

Количество

1

87705156

SEAL KIT

1шт.

2

87395844

ELEMENT

HYDRAULIC FILTER

1шт.

3

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

4

87313049

FILTER ASSY

Contains Ref. 8,10,12

1шт.

5

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

6

87330755

STOP DEVICE

1шт.

7

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

8

87705160

ARRESTER

1шт.

9

84121298

SNAP RING,30mm Thk, Ext

3шт.

10

87330798

PLUG,46mm ID

1шт.

11

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

12

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

13

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

14

87381695

CIRCLIP,8mm Thk

1шт.

15

87473619

TUBE

1шт.

16

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

17

87381696

SNAP RING,8mm Thk, Ext

1шт.

18

87395841

TUBE

1шт.

19

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

20

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

21

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

8 x 1.25

1шт.

22

14496607

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.5 x 21 x 2

1шт.

23

87758486

SHIELD

10.5 x 21 x 2

1шт.

24

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

10.5 x 21 x 2

2шт.

25

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

10.5 x 21 x 2

2шт.

Выбрано товаров: 25
