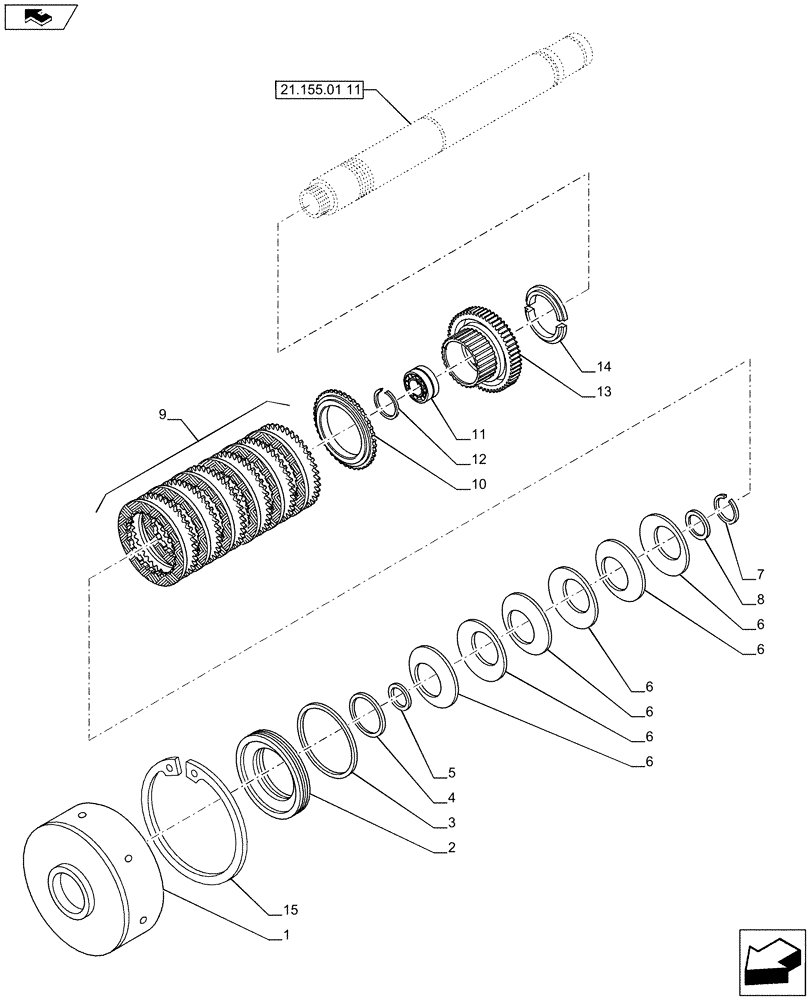

Запчасти Case IH PUMA 185 (21.155.01[12]) - TRANSMISSION 19X6 FPS - 19TH GEAR CLUTCH (VAR.728147-729571) (21) - TRANSMISSION

1

5195117

HOUSING

1шт.

2

87547824

PISTON

1шт.

3

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

4

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

5

47127360

RING,61mm ID x 85.07mm OD x 3mm Thk

1шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

6шт.

7

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

8

5175981

CIRCLIP,1.5mm Thk

1шт.

9

87530788

CLUTCH PACK

1шт.

10

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

1шт.

11

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

2шт.

12

5162623

CIRCLIP,80mm ID

1шт.

13

87687291

DRIVING GEAR

Z=57

1шт.

14

47134108

HALF-RING

1шт.

15

5162251

CIRCLIP,142.5mm ID

1шт.
