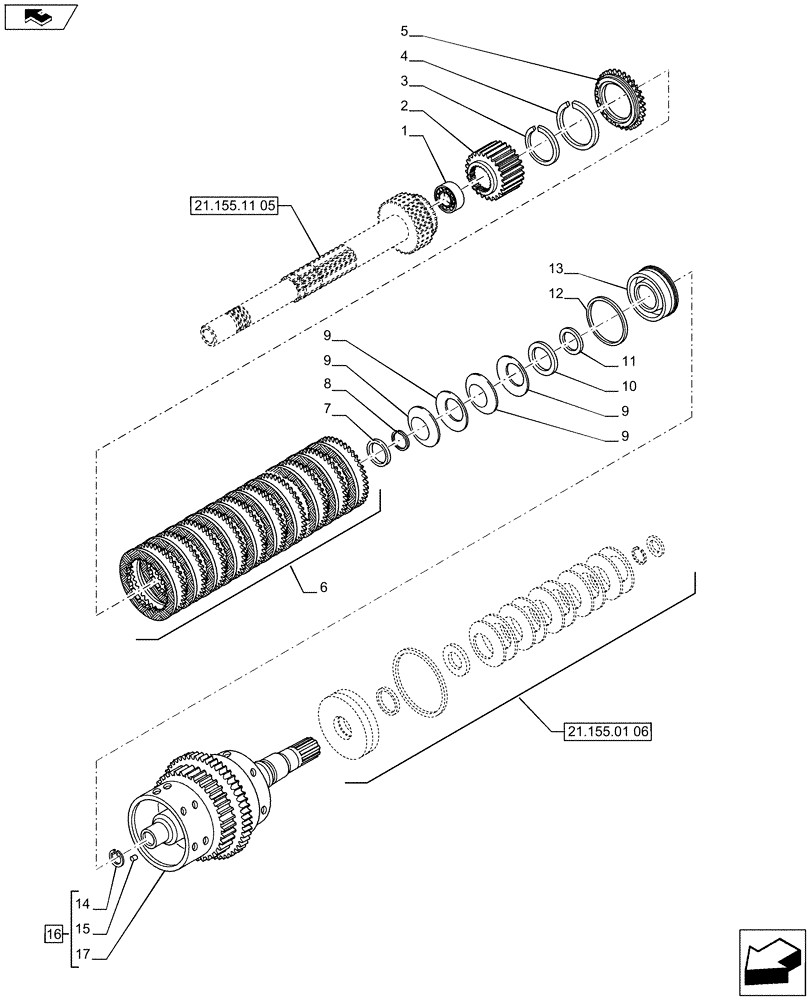

Запчасти Case IH PUMA 185 (21.155.01[05]) - CENTRAL REDUCTION GEARS - FAST/SLOW RANGE CLUTCH (21) - TRANSMISSION

1

5172328

TAPERED BEARING,40mm ID x 75mm OD x 26mm W

1шт.

2

5172234

HUB

1шт.

3

5171953

CIRCLIP,2.5mm Thk

1шт.

4

47132782

SNAP RING,3mm Thk, Int

1шт.

5

47132780

THRUST PLATE,60T, 154.75mm OD

1шт.

6

87530793

CLUTCH PACK

ASSY , Fast Range

1шт.

7

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

8

5175981

CIRCLIP,1.5mm Thk

1шт.

9

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

8шт.

10

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

11

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

12

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

D=142

1шт.

13

5187425

PISTON

1шт.

14

11059076

SNAP RING,M32, Int

1шт.

15

5162260

PLUG,Round, 10.5mm OD

3шт.

16

87312865

GEAR SHAFT

Contains Ref. 14,15,17

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.
