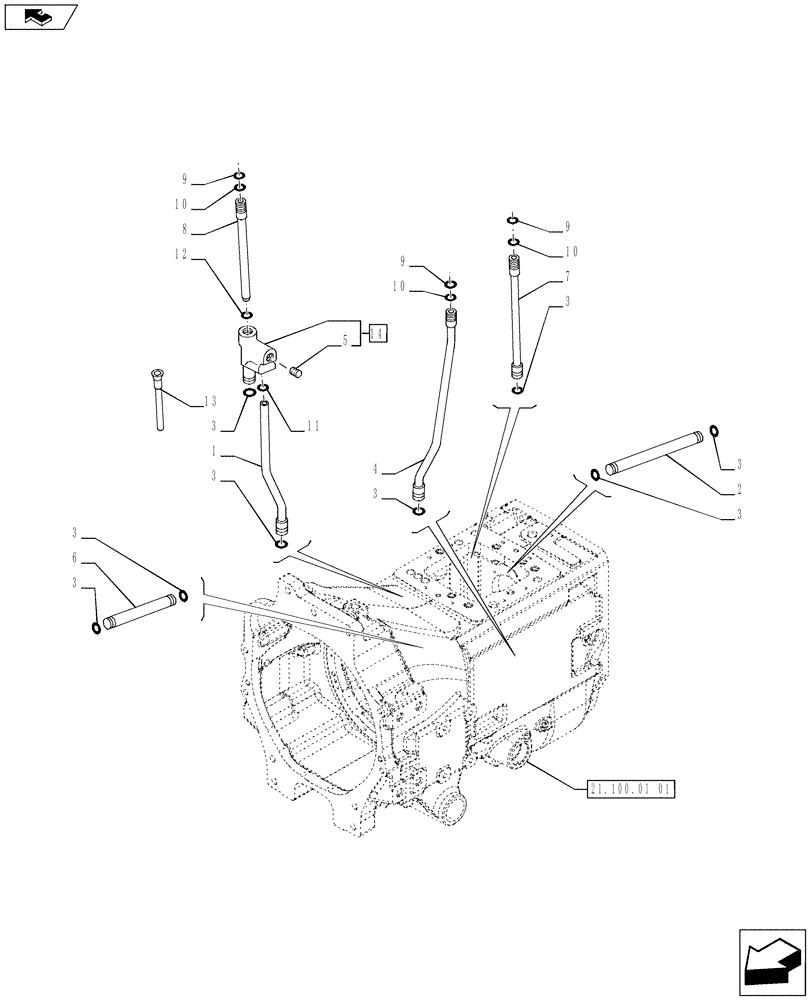

Запчасти Case IH PUMA 185 (21.146.01) - HYDRAULIC GEARBOX CONTROL (21) - TRANSMISSION

1

5172991

HYD TUBE,194mm L

1шт.

2

5176959

HYD TUBE,153mm L

3шт.

3

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

12шт.

4

5179234

HYD TUBE,379mm L

1шт.

5

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

1шт.

6

5183115

HYD TUBE

1шт.

7

5179274

HYD TUBE,220mm L

1шт.

8

5179267

HYD TUBE,171mm L

1шт.

9

13397870

CIRCLIP,16.2mm ID x 18mm OD

3шт.

10

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

6шт.

11

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

12

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

13

5185279

HYD TUBE,318.5mm L

1шт.

14

5179255

HYD CONNECTOR,Hex, M12 x 1.25

ASSY, Contains Ref. 5

1шт.
