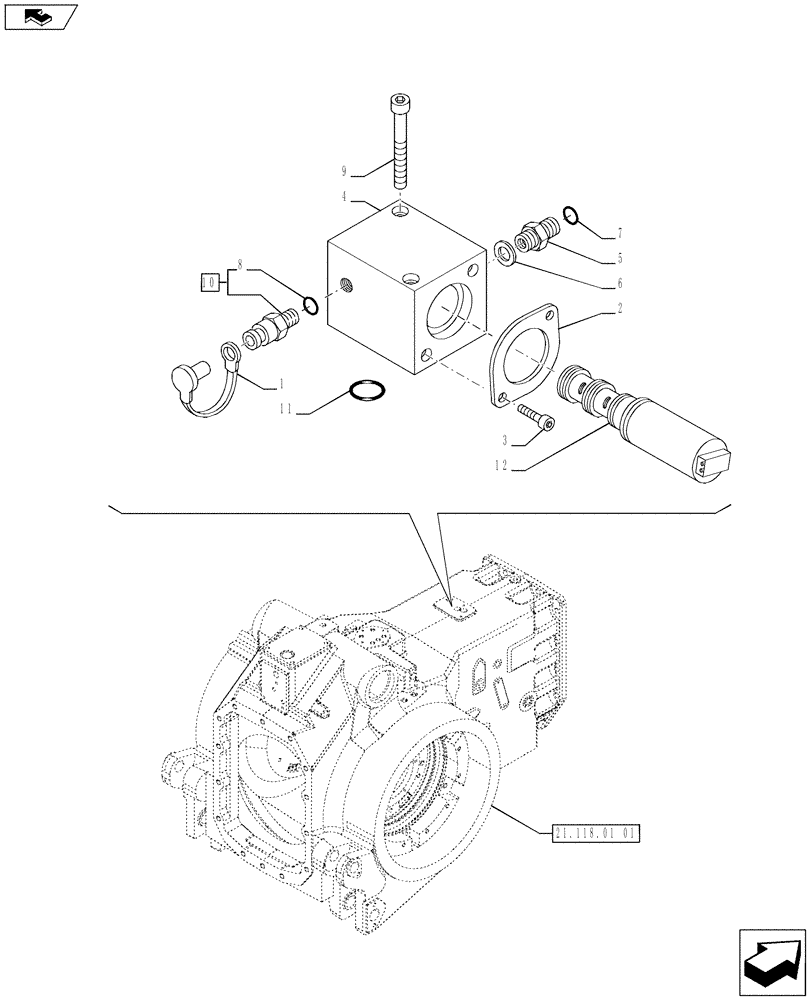

Запчасти Case IH PUMA 185 (21.135.02) - TRANSMISSION 19X6 FPS - SAFETY VALVE AND RELEVANT PARTS (VAR.728147-729571) (21) - TRANSMISSION

1

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

2

5194826

BRACKET

1шт.

3

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

4

5198675

BODY

1шт.

5

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

8

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

9

14308924

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 8.8

2шт.

9

14306824

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

10

5185423

COUPLING

Test Port, Contains Ref. 8

1шт.

11

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

12

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

Dump, Black connectors

1шт.
