Запчасти Case IH PUMA 185 (21.135.0101[01]) - TRASMISSION 19X6 FPS - TOP COVER CONTROL VALVE (VAR.728147-729571) (21) - TRANSMISSION

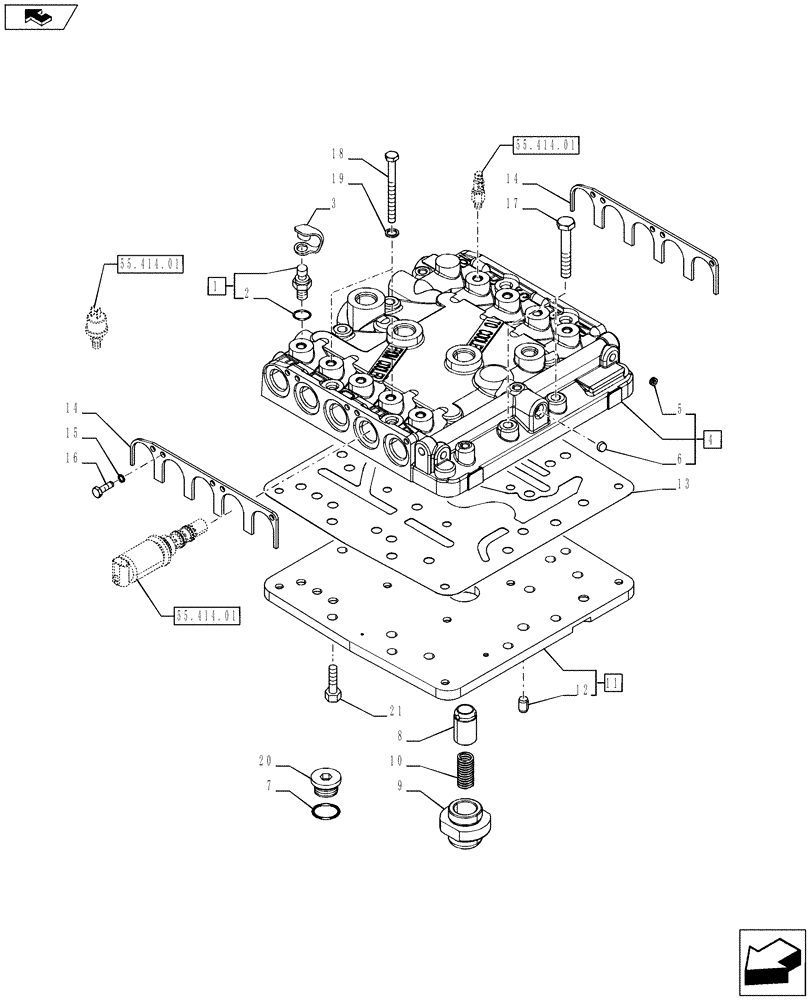

Схема запчастей Case IH PUMA 185 - (21.135.0101[01]) - TRASMISSION 19X6 FPS - TOP COVER CONTROL VALVE (VAR.728147-729571) (21) - TRANSMISSION
7
12
6
14
8
55.414.01
3
55.414.01
55.414.01
9
10
14
17
21
4
1
15
19
20
5
16
11
home
18
2
13

Артикул

Название

Примечание

Количество

1

5185423

COUPLING

ASSY, Contains Ref. 2

5шт.

2

14437785

O-RING,11.3mm ID x 2.4mm

5шт.

3

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

5шт.

4

87315898

TOP COVER

ASSY, Contains Ref. 5,6

1шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

6

14328401

PLUG,M14, Tapered

1шт.

7

10260960

SEALING WASHER,M10.2 x 14 x 1.5

6шт.

8

5187494

BY-PASS VALVE

1шт.

9

5183477

BODY

1шт.

10

5176720

SPRING,Compression, 17mm OD x 50mm L

1шт.

11

87342776

PLATE

ASSY, Contains Ref. 12

1шт.

12

5153109

DOWEL,10mm OD x 15mm L

2шт.

13

5194959

GASKET,0.5mm Thk

1шт.

14

47126217

PLATE

2шт.

15

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

10шт.

16

14433121

HEX SOC SCREW,M6 x18mm, Cl 8.8, Full Thd

10шт.

17

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

18

47126246

BOLT,Hex, M10 x 1.25 x 78mm, Spcl

4шт.

19

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

20

11903011

PLUG,M10 x 1 x 11, Cl5.8

6шт.

21

14302831

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 10.9, Full Thd

8шт.

Выбрано товаров: 21
