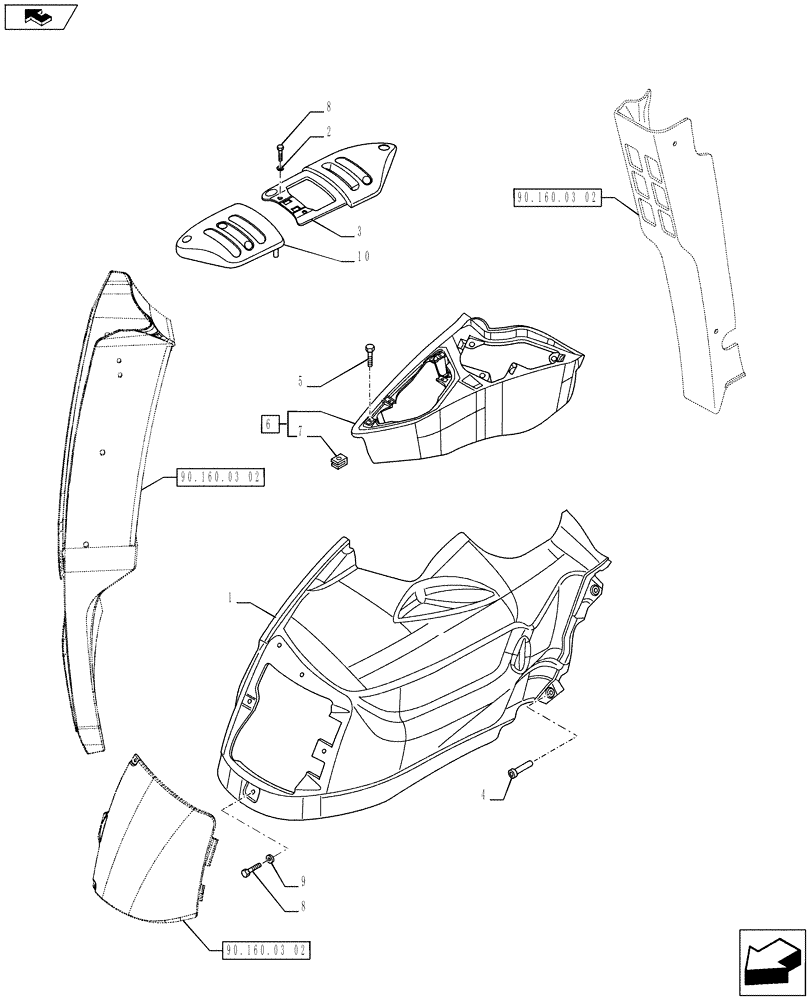

Запчасти Case IH PUMA 185 (90.160.0302) - CONTROLS COVER - RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242733

PANEL

RH

1шт.

2

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

7шт.

3

84190828

BEZEL

1шт.

4 Mechanical Remote Valve, VAR.720669

1шт.

3

84190831

BEZEL

1шт.

Standard Equipment

1шт.

4

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

8шт.

5

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

5шт.

6

84212620

PADDING

ASSY, Contains Ref. 7

1шт.

7

87567755

SPRING NUT,M5

NUT

6шт.

8

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

10шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

10

84190826

BEZEL

1шт.

Standard Equipment

1шт.
