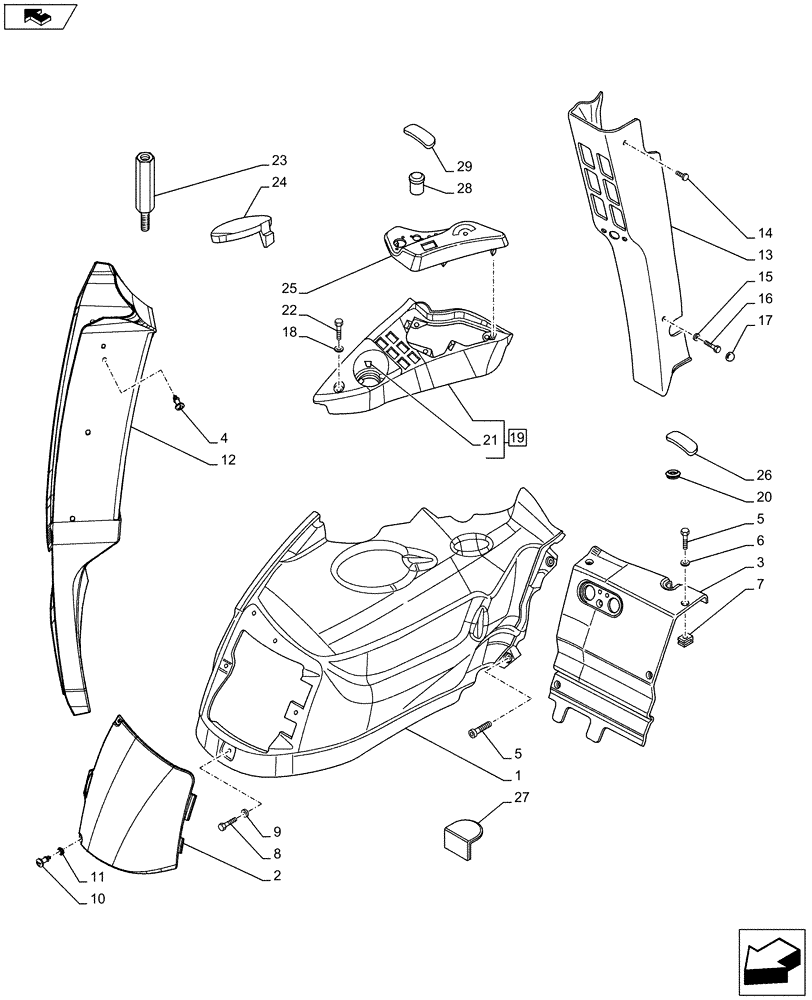

Запчасти Case IH PUMA 185 (90.160.03[02]) - CAB SIDE COVERS - RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242720

TRIM PANEL

RH

1шт.

Only for Models with Electrohydraulic Remotes

1шт.

2

87734672

COVER

1шт.

3

87479668

PANEL

1шт.

4

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

8шт.

5

15646901

SCREW,Pan Hd, M5.5 x 1.8 x 16mm

4шт.

6

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

7

87567755

SPRING NUT,M5

4шт.

8

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

4шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

10

87734455

FASTENER

2шт.

11

87734456

RETAINER,13mm OD x 0.8mm Thk

2шт.

12

87388211

PADDING

1шт.

13

84285944

PADDING

1шт.

13

84285943

PADDING

1шт.

Baler Bar Display Ready, VAR.743407

1шт.

14

82023460

STUD,M7.85 x 19.50mm, Plastic

3шт.

15

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

17

82012814

CAP,M10

2шт.

18

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

19

84206691

COVER

ASSY, Contains Ref. 21

1шт.

Only for Models with Electrohydraulic Remotes

1шт.

20

81862738

PLUG,M38 x 28 x 5mm

1шт.

21

304061A1

BUMPER,Rubber

3шт.

22

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

4шт.

23

87493058

SPACER,Hex, M6 x 1 x 47mm L

1шт.

24

87752306

BLANK-OFF PLUG,Grey

1шт.

25

84249026

COVER

1шт.

540/1000 Interchangeable Shafts, VAR.720809; 540E/1000 Interchangeable Shafts, VAR.743335, Basildon Production only

1шт.

4 Speed Electrically Shiftable PTO, VAR.743349-743374 (Commercial Feature 743611), 743356 (Commercial Feature 743612)

1шт.

25

84315935

COVER

1шт.

26

47056777

BLANK-OFF PLUG,31mm x 87mm, Black

1шт.

27

82024718

PANEL

1шт.

Less Tow Hook Controls

1шт.

28

83908579

PLUG,M7.62

1шт.

540/1000 Interchangeable Shafts, VAR.720809; 540E/1000 Interchangeable Shafts, VAR.743335, Basildon Production only

1шт.

29

87302919

BLANK-OFF PLUG

1шт.
