Запчасти Case IH PUMA 185 (90.156.0201) - HEATED FRONT AND REAR WINDOW - CAB GLASS (VAR.743043-743427 / 743630) (90) - PLATFORM, CAB, BODYWORK AND DECALS

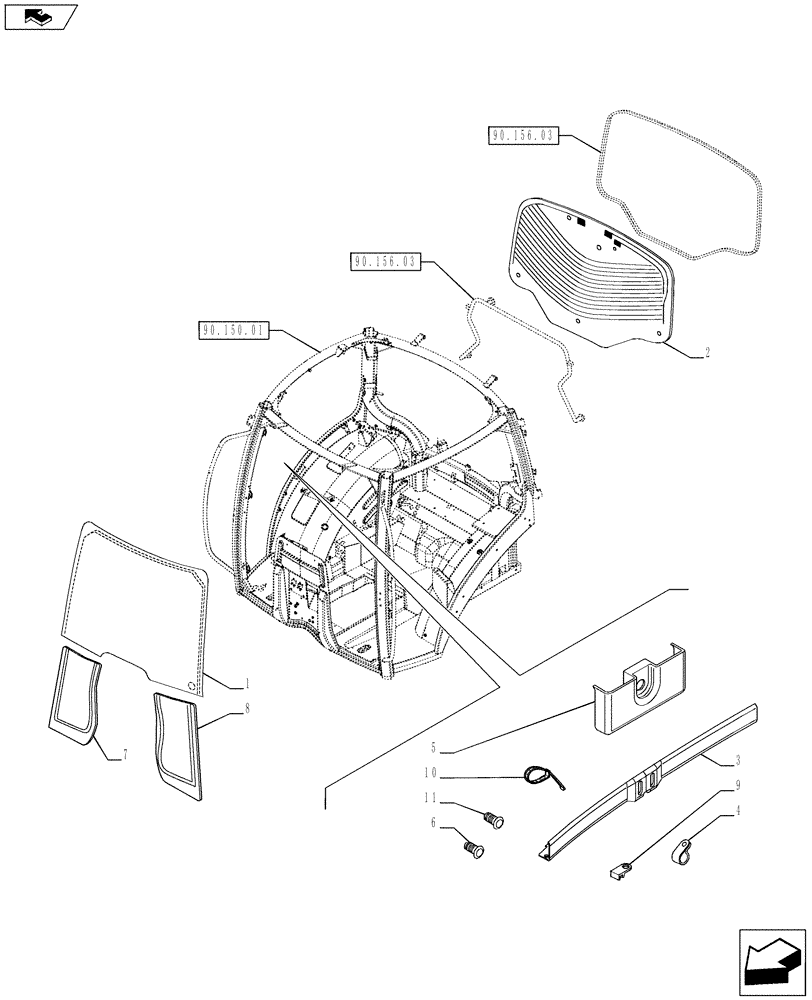

Схема запчастей Case IH PUMA 185 - (90.156.0201) - HEATED FRONT AND REAR WINDOW - CAB GLASS (VAR.743043-743427 / 743630) (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
3
4
11
9
6
90.150.01
home
90.156.03
90.156.03
7
8
10
2

Артикул

Название

Примечание

Количество

1

87744982

WINDSHIELD

Heated

1шт.

2

87744548

CAB GLASS

Heated Rear

1шт.

3

87711391

COVER

1шт.

4

86642442

CLAMP,3.2mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

5

87711392

COVER

1шт.

6

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

7

87530233

GLASS

RH

1шт.

8

87530232

GLASS

LH

1шт.

9

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

2шт.

10

14560287

CABLE TIE,207.00mm L

2шт.

11

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

4шт.

Выбрано товаров: 11
