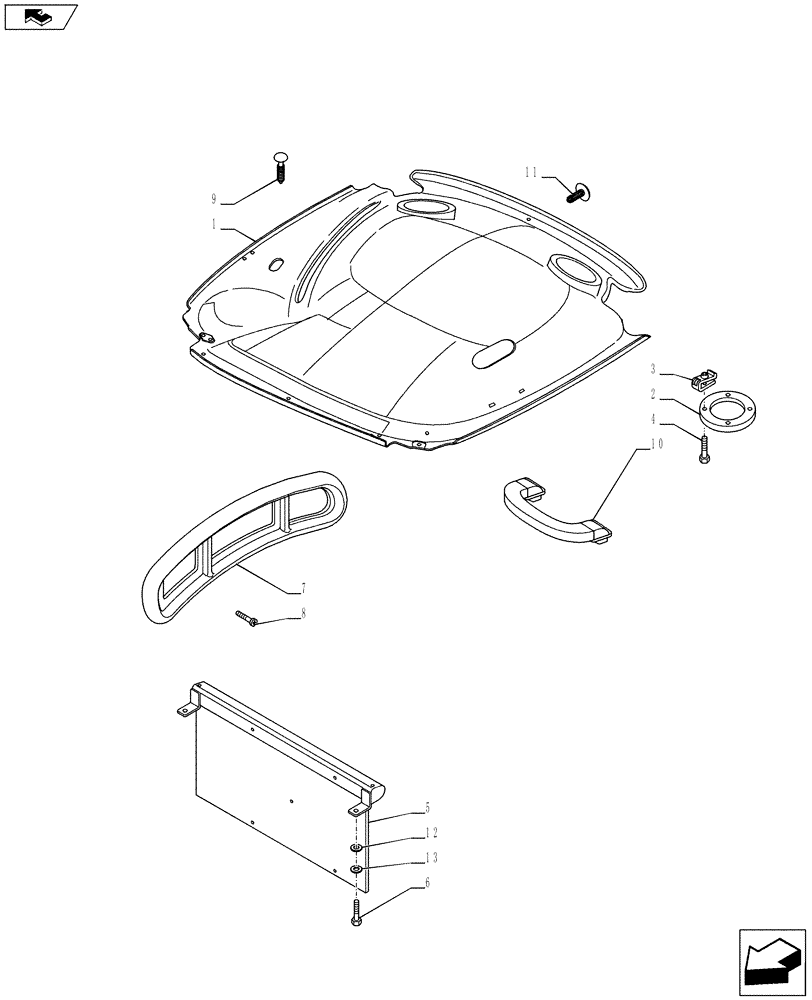

Запчасти Case IH PUMA 185 (90.150.03[03]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER - C9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87621050

ROOF LINING

1шт.

2

82022875

GRILLE,185mm OD

Speaker

2шт.

3

81872135

NUT,Retaining, M4.20

8шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

2шт.

7

87673408

CONSOLE

Wheat

1шт.

Standard Equipment

1шт.

7

87673403

CONSOLE

1шт.

Deluxe Cab with Electric Telescopic Shatterproof Mirrors, VAR.743227-743228

1шт.

8

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

3шт.

9

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

5шт.

10

84227380

HANDLE

Grey

1шт.

11

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

12

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

13

12605274

WASHER

2шт.
