Запчасти Case IH PUMA 185 (90.150.03[01]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - ROOF - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

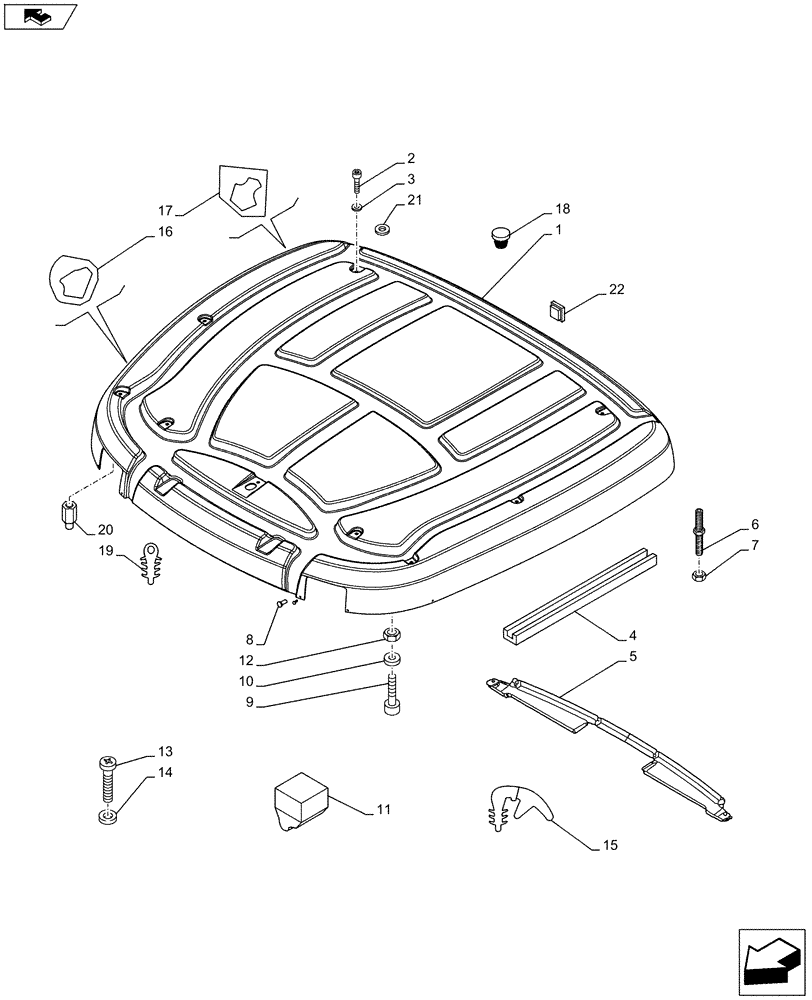

Схема запчастей Case IH PUMA 185 - (90.150.03[01]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - ROOF - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
21
4
home
13
17
2
9
11
1
5
19
22
14
18
6
20
12
16
3
10
15

Артикул

Название

Примечание

Количество

1

84316054

ROOF

1шт.

2

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

3

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

8шт.

4

82028318

SEAL

1шт.

5

87570853

COVER

1шт.

6

82034115

STUD

2шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

8

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

11шт.

9

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

82036366

SEAL,21mm W x 5000mm L

1шт.

12

83935425

SPRING NUT,Prev Torque, #8

4шт.

13

84187830

SCREW,Torx, Pan HD, M4.2 x 1.4 x 13mm

6шт.

14

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

6шт.

15

82034370

SEAL

1шт.

16

82023417

GASKET,10mm Thk, Black

RH

1шт.

17

82038033

GASKET,10mm Thk

RH, Black

1шт.

17

82038034

INSULATION

LH, Grey

1шт.

18

87519328

BLANK-OFF PLUG,M32 x 9 x 3.1

32MM

1шт.

19

87540957

RUBBER SEAL,1500mm L

1шт.

20

82034114

SPACER,M6 x 25mm L

8шт.

21

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

22

5151033

PLASTIC PLUG

2шт.

Выбрано товаров: 23
