Запчасти Case IH PUMA 185 (90.150.0201[01]) - MECHANICAL CAB SUSPENSION - FRONT CAB SUPPORTS (VAR.720635) (90) - PLATFORM, CAB, BODYWORK AND DECALS

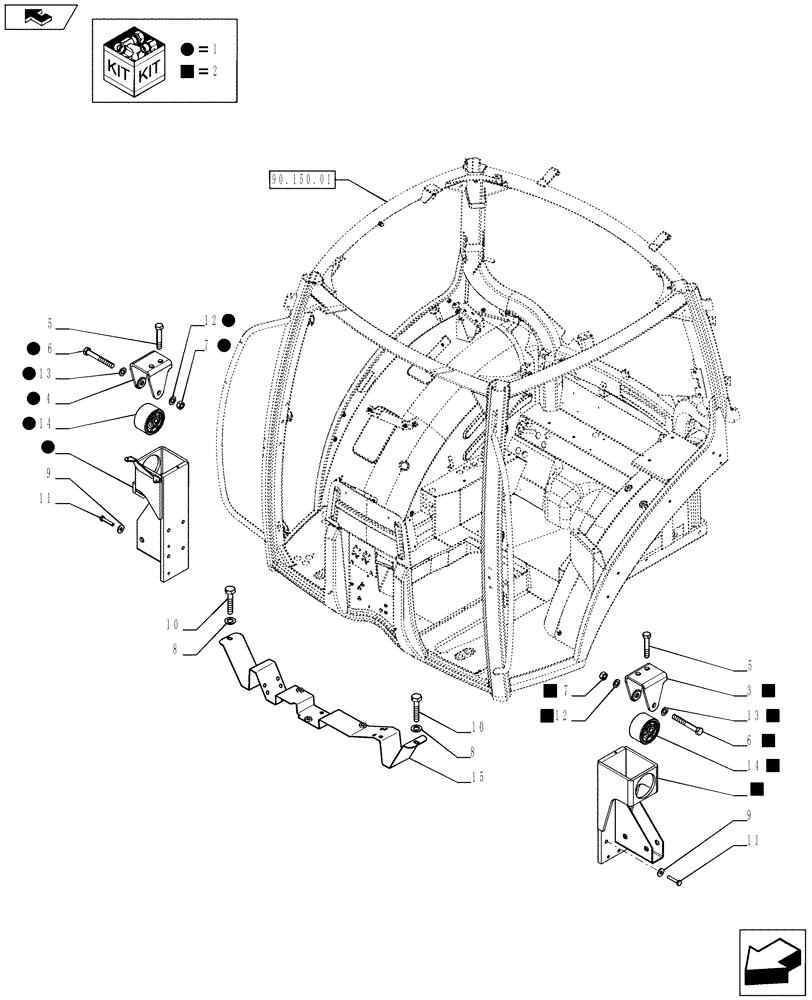

Схема запчастей Case IH PUMA 185 - (90.150.0201[01]) - MECHANICAL CAB SUSPENSION - FRONT CAB SUPPORTS (VAR.720635) (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
2
15
3
14
home
90.150.01
8
2
8
2
1
9
11
2
1
1
12
9
4
6
7
14
11
13
2
12
1
1
5
10
2
13
1
2
2
10
5
1
7
1
2
1

Артикул

Название

Примечание

Количество

1

84353510

SUPPORT

ASSY,RH, Contains Ref. 4-7,9,11-14

1шт.

2

84353515

SUPPORT

,ASSY,LH, Contains Ref. 3,5-7,9,11-14

1шт.

3

84252853

YOKE

LH

1шт.

4

84252843

YOKE

RH

1шт.

5

9780073

BOLT,Hex, M20 x 2.5 x 110mm, Cl 8.8

4шт.

6

384197

BOLT,Hex, M20 x 2.5 x 150mm, Cl 8.8

2шт.

7

9706694

NUT,Hex, M20, Cl 8

2шт.

8

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

9

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

8шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

11227021

BOLT,Hex, M14 x 1.5 x 65, 8.8

8шт.

12

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

13

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

2шт.

14

87396965

INSULATOR,100mm OD x 85.3mm L

2шт.

15

84345499

BRACKET

1шт.

Выбрано товаров: 15
