Запчасти Case IH PUMA 185 (90.150.02[01]) - FRONT CAB SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

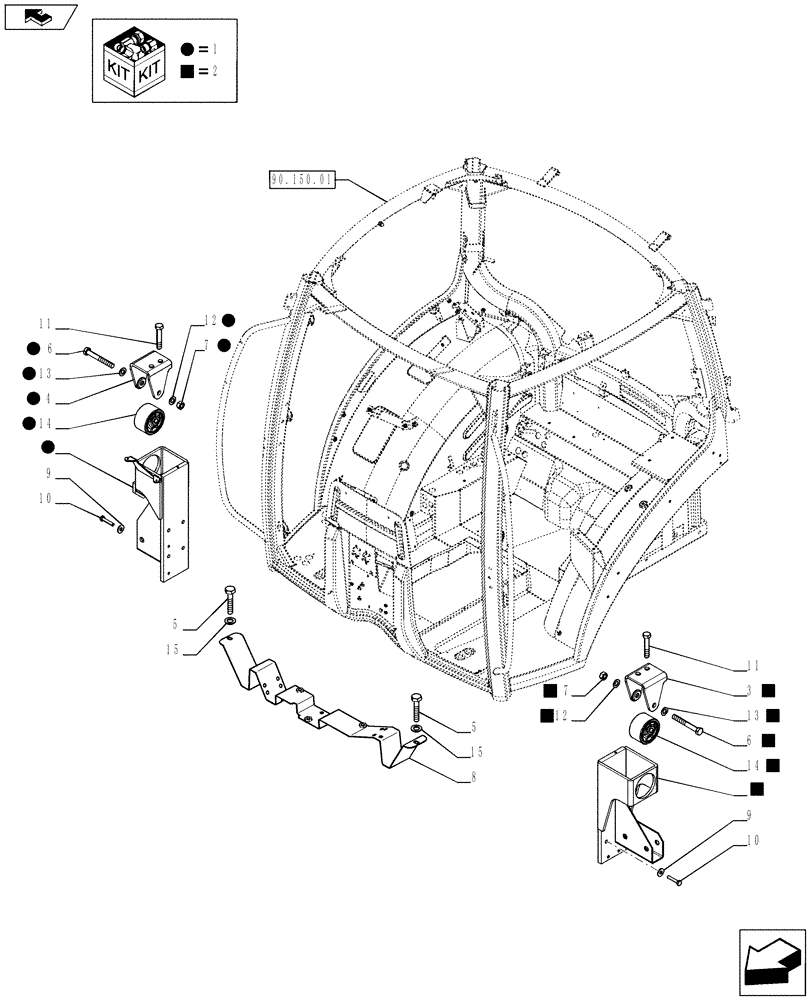

Схема запчастей Case IH PUMA 185 - (90.150.02[01]) - FRONT CAB SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
1
11
2
15
3
1
2
13
2
1
1
1
7
14
1
1
2
12
2
6
14
5
90.150.01
11
8
5
10
home
9
2
4
15
1
2
2
7
1
6
13
12
10
2

Артикул

Название

Примечание

Количество

1

84353510

SUPPORT

ASSY,RH, Contains Ref. 4-8,12-14

1шт.

2

84353515

SUPPORT

ASSY,LH, Contains Ref. 3,5-8,12-14

1шт.

3

84252853

YOKE

LH

1шт.

4

84252843

YOKE

RH

1шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

384197

BOLT,Hex, M20 x 2.5 x 150mm, Cl 8.8

2шт.

7

9706694

NUT,Hex, M20, Cl 8

2шт.

8

84345499

BRACKET

1шт.

9

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

8шт.

10

11227021

BOLT,Hex, M14 x 1.5 x 65, 8.8

8шт.

11

11125921

BOLT,Hex, M20 x 110, 8.8

4шт.

12

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

13

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

2шт.

14

87396965

INSULATOR,100mm OD x 85.3mm L

2шт.

15

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

Выбрано товаров: 15
