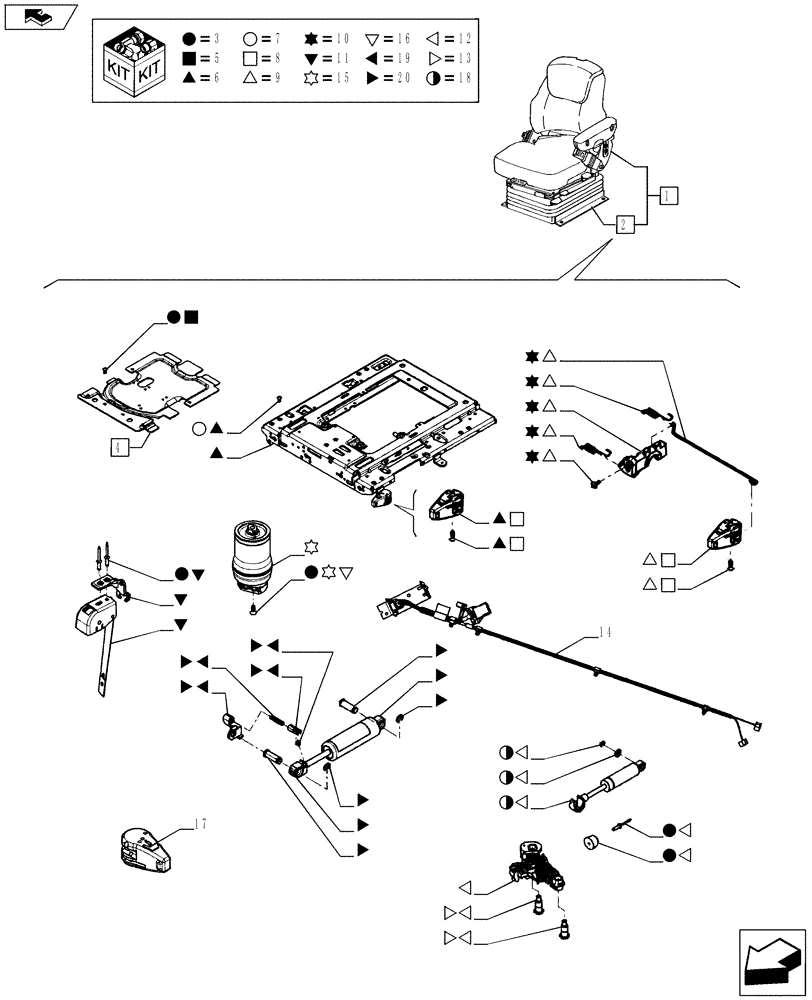

Запчасти Case IH PUMA 185 (90.120.0201[03]) - DELUXE SEAT WITH REELING SEAT BELT - BREAKDOWN (VAR.720963) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87486984

SEAT

ASSY, Contains Ref. 2-20, See Also Page 01,02,04

1шт.

Electrohydraulic Remote Models Only

1шт.

1

84215889

DRIVER SEAT

ASSY, Contains Ref. 2-20, See Also Page 01,02,04

1шт.

Mechanical Remote Models Only

1шт.

VAR.720963

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension, ASSY, Incl. in 1, Contains Ref. 3-20, See Also Page 04

1шт.

3

84190975

REPAIR KIT

1шт.

4

84190947

COVER

Contains Ref. 5

1шт.

5

84191006

REPAIR KIT

1шт.

6

84190966

PLATE

Contains Ref. 6,7

1шт.

7

84191010

REPAIR KIT

1шт.

8

1472163

HANDLE

1шт.

9

84190989

ADJUSTER

Contains Ref. 8,10

1шт.

10

84191015

REPAIR KIT

1шт.

11

84190962

KIT

1шт.

12

84190978

BELLOWS

Contains Ref. 13,18

1шт.

13

84191002

REPAIR KIT

1шт.

14

84190970

WIRE HARNESS

1шт.

15

84190972

SHOCK ABSORBER

Contains Ref. 16

1шт.

16

84191012

REPAIR KIT

1шт.

17

82035123

HANDLE

1шт.

18

84190985

SHOCK ABSORBER

1шт.

19

84191071

KIT

Contains Ref. 20

1шт.

20

84190998

SERVICE KIT

1шт.
