Запчасти Case IH PUMA 185 (90.120.0104[02]) - LEATHER DELUXE HEATED SEAT WITH SEMI-ACTIVE SUSPENSION - BREAKDOWN (VAR.728319) (90) - PLATFORM, CAB, BODYWORK AND DECALS

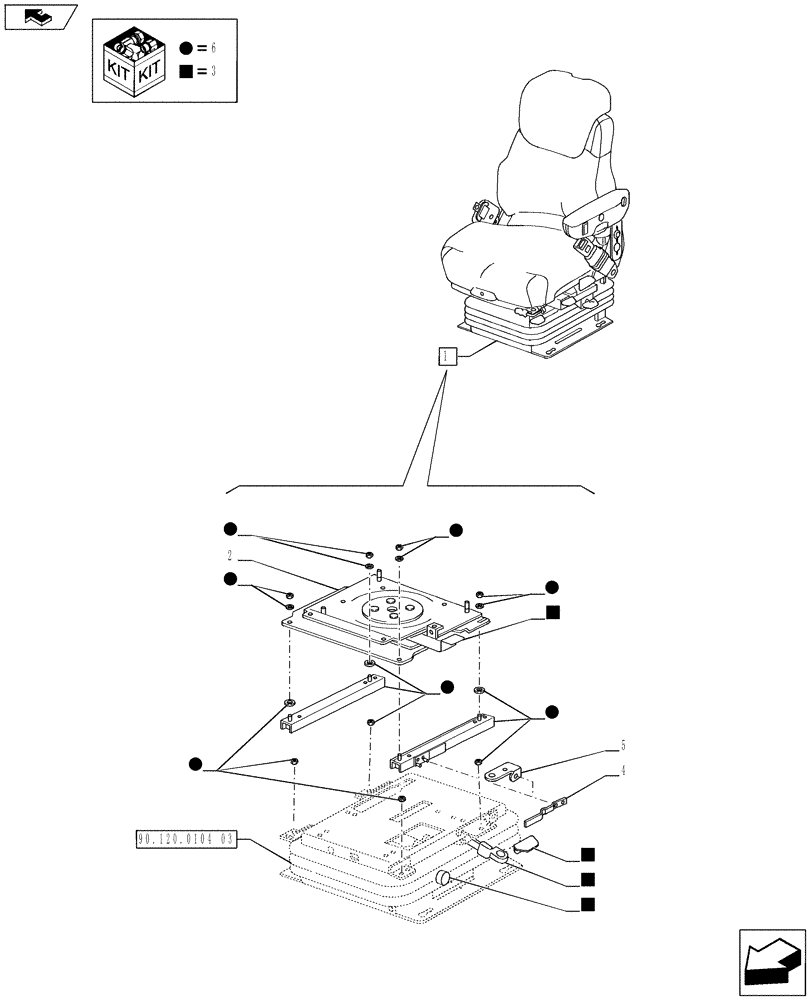

Схема запчастей Case IH PUMA 185 - (90.120.0104[02]) - LEATHER DELUXE HEATED SEAT WITH SEMI-ACTIVE SUSPENSION - BREAKDOWN (VAR.728319) (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
3
6
4
90.120.0104 03
home
6
6
6
6
3
1
6
3
5
2
6
3
3
3
6

Артикул

Название

Примечание

Количество

1

87706661

SEAT

ASSY, See Also Page 02,03

1шт.

Electrohydraulic Remote Models Only

1шт.

1

84171029

DRIVER SEAT

ASSY, See Also Page 02,03

1шт.

Mechanical Remote Models Only

1шт.

2

84155804

PIVOT PLATE

Swivel

1шт.

Electrohydraulic Remote Models Only

1шт.

2

84155770

PIVOT PLATE

Swivel

1шт.

Mechanical Remote Models Only

1шт.

3

82020839

KIT

Knobs

1шт.

4

82020809

SERVICE KIT

Slide lever

1шт.

5

82020923

BRACKET

Lever Support

1шт.

6

82020814

SERVICE KIT

Slide

1шт.

Выбрано товаров: 12
