Запчасти Case IH PUMA 185 (90.120.0102[02]) - DELUXE AIR SEAT WITH REELING SEAT BELT - BREAKDOWN (VAR.720963) (90) - PLATFORM, CAB, BODYWORK AND DECALS

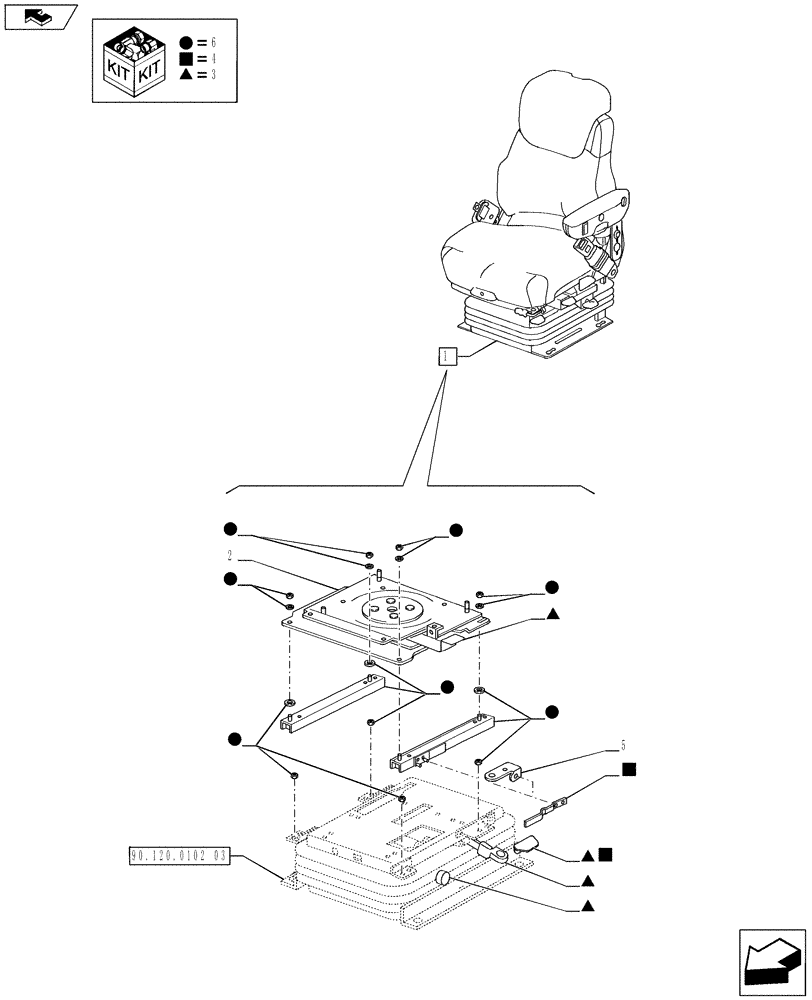

Схема запчастей Case IH PUMA 185 - (90.120.0102[02]) - DELUXE AIR SEAT WITH REELING SEAT BELT - BREAKDOWN (VAR.720963) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
6
6
3
1
3
3
6
4
6
6
4
home
90.120.0102 03
4
6
6
5
6
3
6
3
4

Артикул

Название

Примечание

Количество

1

84155767

SEAT

ASSY, See Also Page 01,03

1шт.

Electrohydraulic Remote Models Only

1шт.

1

84171082

DRIVER SEAT

ASSY, See Also Page 01,03

1шт.

Mechanical Remote Models Only

1шт.

2

84155770

PIVOT PLATE

Swivel

1шт.

Mechanical Remote Models Only

1шт.

2

84155804

PIVOT PLATE

Swivel

1шт.

Electrohydraulic Remote Models Only

1шт.

3

82020839

KIT

1шт.

4

82020809

SERVICE KIT

Slide Lever

1шт.

5

82020923

BRACKET

Lever Support

1шт.

6

82020814

SERVICE KIT

Slide

1шт.

Выбрано товаров: 12
