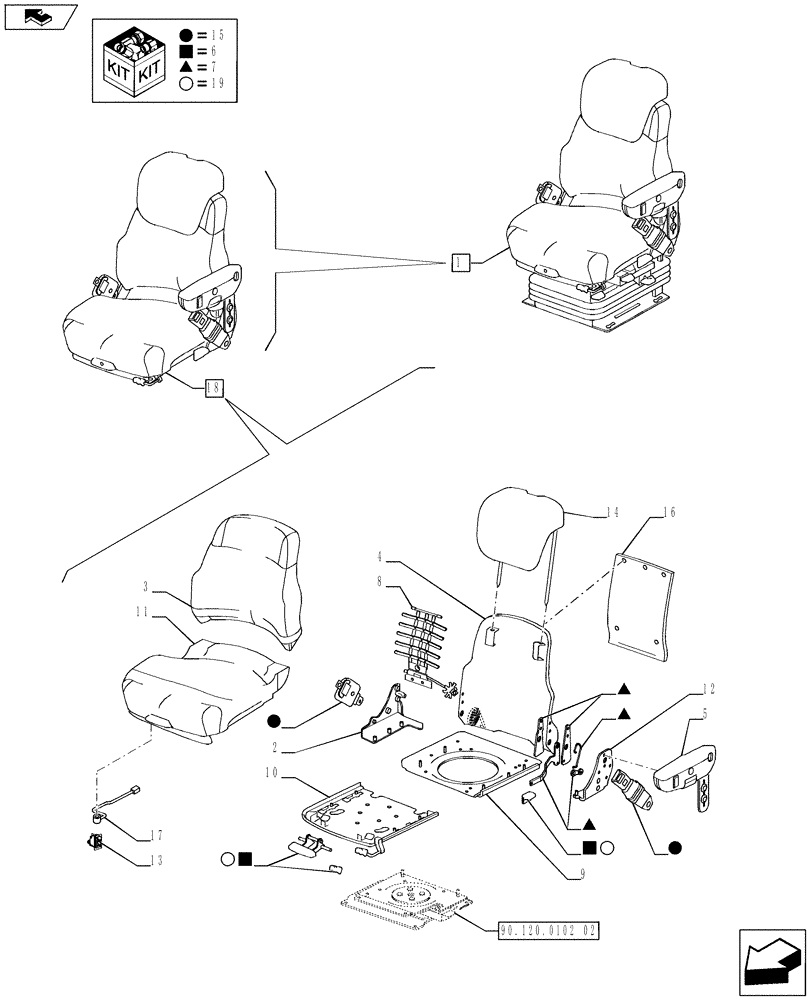

Запчасти Case IH PUMA 185 (90.120.0102[01]) - DELUXE AIR SEAT WITH REELING SEAT BELT - BREAKDOWN (VAR.720963) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84155767

SEAT

ASSY, See Also Page 02,03

1шт.

Electrohydraulic Remote Models Only

1шт.

1

84171082

DRIVER SEAT

ASSY, See Also Page 02,03

1шт.

Mechanical Remote Models Only

1шт.

2

84155803

HOLDER

RH

1шт.

3

84155809

SEAT BACK

1шт.

4

87529838

SEAT BACK

Back Pan

1шт.

5

47127914

SERVICE KIT

LH

1шт.

6

87308611

SERVICE KIT

1шт.

7

82020808

KIT

Recliner

1шт.

8

87367816

KIT

Lumbar

1шт.

9

87529831

SEAT BACK

Seat Pan

1шт.

10

87529825

KIT

Cushion Extension

1шт.

11

84155806

SEAT CUSHION

1шт.

12

47127917

SERVICE KIT

LH

1шт.

13

87308605

SWITCH

Height Control

1шт.

14

84155811

SEAT HEADREST

Upper

1шт.

Includes two plastic tubes

1шт.

15

82020831

KIT

Seat Belt

1шт.

16

82030777

BRIEF CASE

1шт.

17

87529796

SWITCH

Operator Presence Switch

1шт.

18

84155796

SEAT

TOP, ASSY

1шт.

19

82020839

KIT

Knobs

1шт.
