Запчасти Case IH PUMA 185 (90.120.01) - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

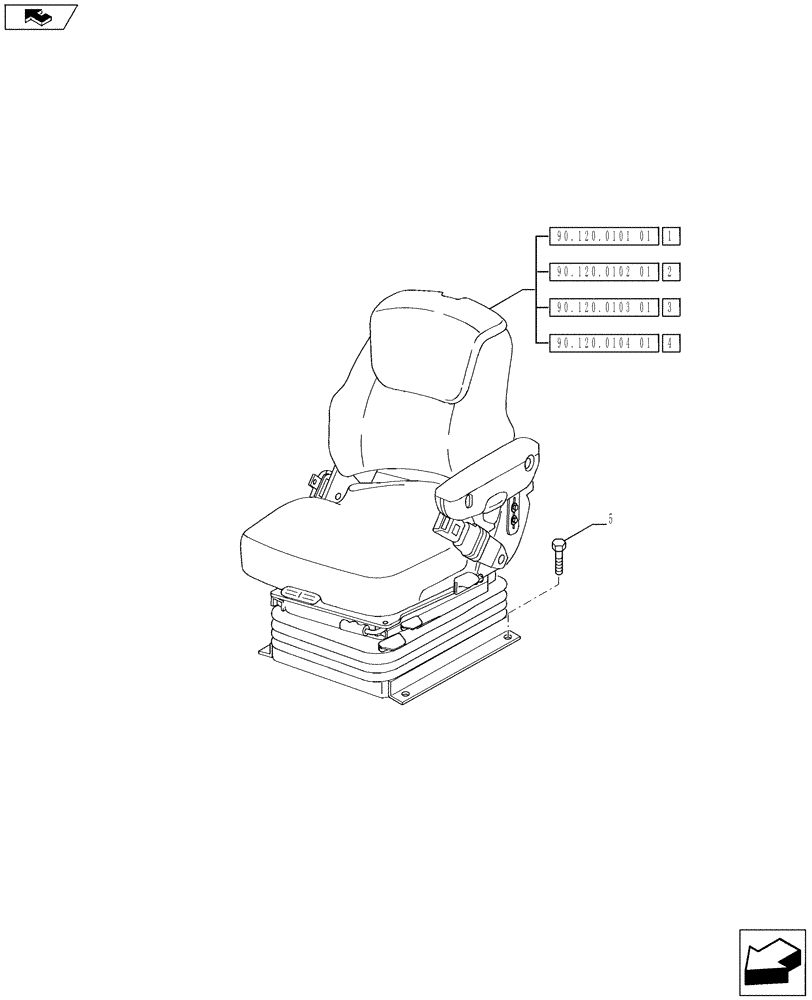

Схема запчастей Case IH PUMA 185 - (90.120.01) - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
3
2
90.120.0101 01
90.120.0104 01
90.120.0103 01
home
90.120.0102 01
5
4

Артикул

Название

Примечание

Количество

1

84155794

SEAT

ASSY

1шт.

Air Seat with Seat Belt

1шт.

2

84155767

SEAT

ASSY

1шт.

Deluxe Seat with Reeling Seat Belt, VAR.720963

1шт.

Electrohydraulic Remote Models Only

1шт.

2

84171082

DRIVER SEAT

ASSY

1шт.

Deluxe Seat with Reeling Seat Belt, VAR.720963

1шт.

Mechanical Remote Models Only

1шт.

3

84171036

DRIVER SEAT

ASSY

1шт.

Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728679

1шт.

Mechanical Remote Models Only

1шт.

3

84169224

ASSY

1шт.

Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728679

1шт.

Electrohydraulic Remote Models Only

1шт.

4

84169226

SEAT

ASSY

1шт.

Red Leather Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728319

1шт.

Electrohydraulic Remote Models Only

1шт.

4

84171029

DRIVER SEAT

ASSY

1шт.

Red Leather Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728319

1шт.

Mechanical Remote Models Only

1шт.

5

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 21
