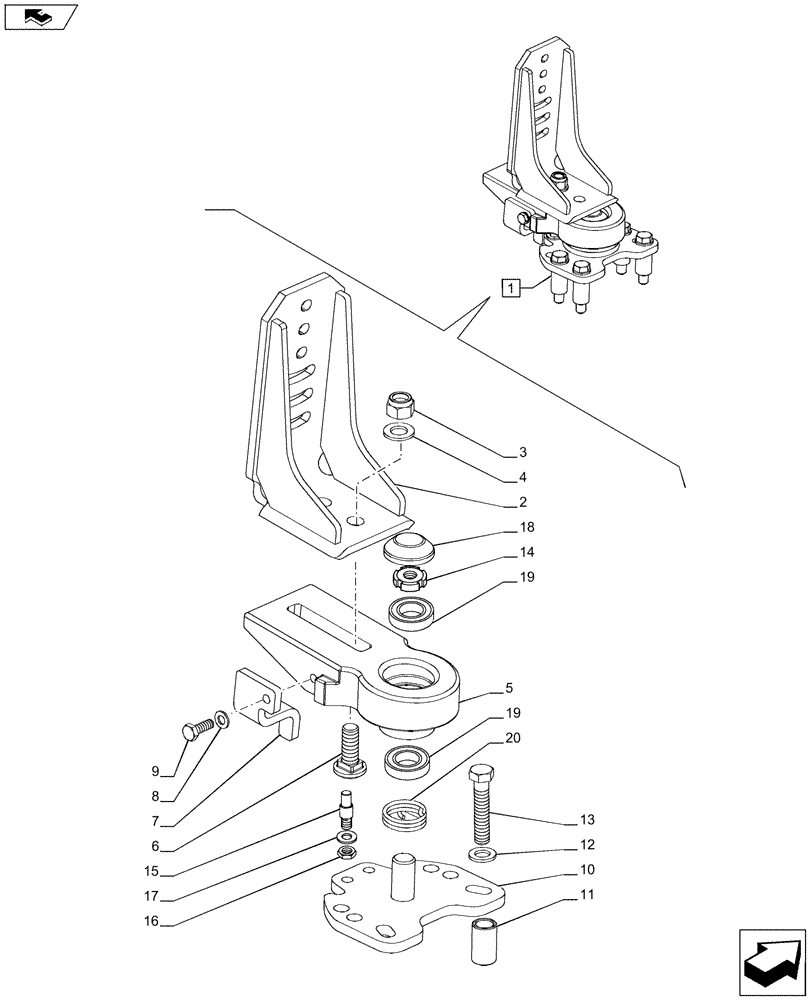

Запчасти Case IH PUMA 185 (90.116.01[03]) - DYNAMIC FRONT FENDERS - SUPPORT - BREAKDOWN (VAR.720497-728575) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84179112

HUB

RH, Contains Ref. 2-20

1шт.

1

84179113

HUB

LH, Contains Ref. 2-20

1шт.

2

84179111

SUPPORT

2шт.

3

47132634

NUT,M18, 1.5mm Pitch

M18 x 1.5

1шт.

4

14489601

WASHER,19mm ID x 34mm OD x 3mm Thk

D=19

1шт.

5

87543521

HUB

2шт.

6

47132633

SCREW,M18 x 1.5, Cl 8.8

M18 x 1.5

1шт.

7

87748071

LOCKING PLATE

RH

1шт.

7

87748072

LOCKING PLATE

LH

1шт.

8

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

1шт.

9

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

M10 x 1.5 x 30

1шт.

10

87543520

BASE

1шт.

11

87543524

SPACER,45mm

4шт.

12

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

D=17

4шт.

13

11254121

BOLT,Hex, M16 x 80, 8.8

4шт.

14

47132629

LOCK NUT,M25 x 1.5 ZG

1шт.

15

47132631

DOWEL,M14 x 1.5mm

1шт.

16

10791311

THIN NUT,M14 x 1.5, Cl 04

M14 x 1.5

1шт.

17

11191079

BELLEVILLE WASHER,Belleville, 15mm ID x 27mm OD x 2.6mm Thk

1шт.

18

47132625

COVER

1шт.

19

26799930

TAPERED BEARING,25mm ID x 52mm OD x 16.25mm W

2шт.

20

84366242

SPRING

RH

1шт.

20

84366651

SPRING

LH

1шт.
