(90.116.01[01]) - DYNAMIC FRONT FENDERS - SUPPORT (VAR.720497-728575)

Запчасти Case IH PUMA 185 (90.116.01[01]) - DYNAMIC FRONT FENDERS - SUPPORT (VAR.720497-728575) (90) - PLATFORM, CAB, BODYWORK AND DECALS

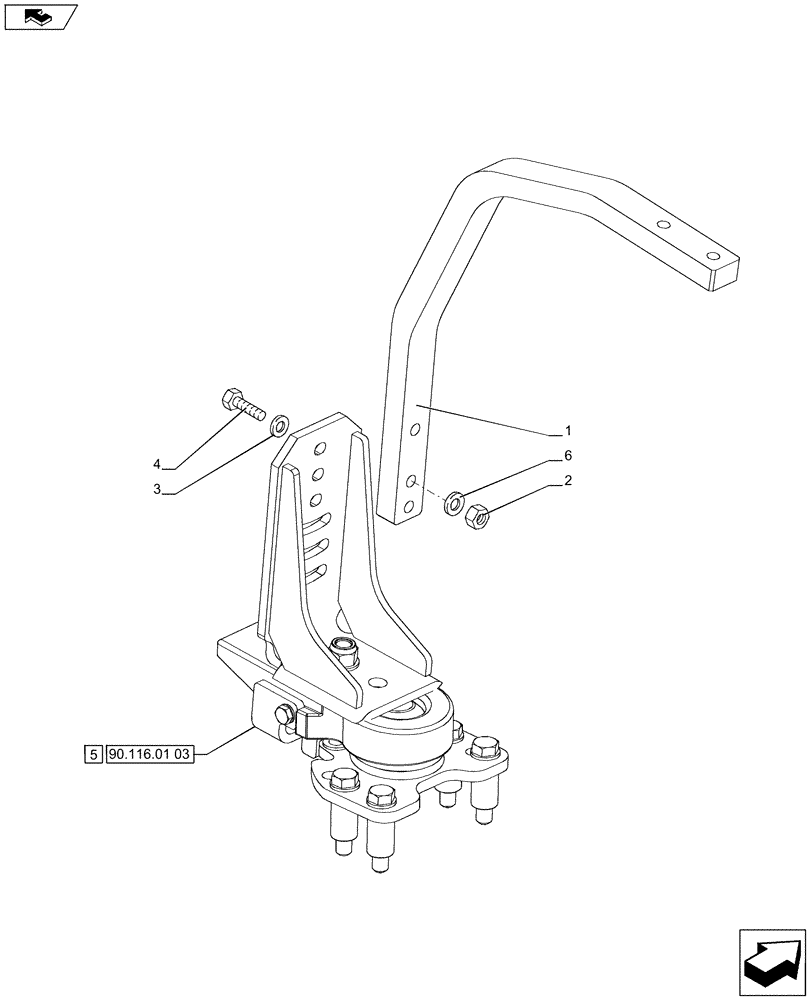

Схема запчастей Case IH PUMA 185 - (90.116.01[01]) - DYNAMIC FRONT FENDERS - SUPPORT (VAR.720497-728575) (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
3
4
5
90.116.01 03
home
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87744046

SUPPORT

2шт.

2

12164911

NUT,M12 x 1.75, Cl 8

4шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

4

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

8шт.

5

84179112

HUB

RH, ASSY

1шт.

5

84179113

HUB

LH, ASSY

1шт.

Выбрано товаров: 6
