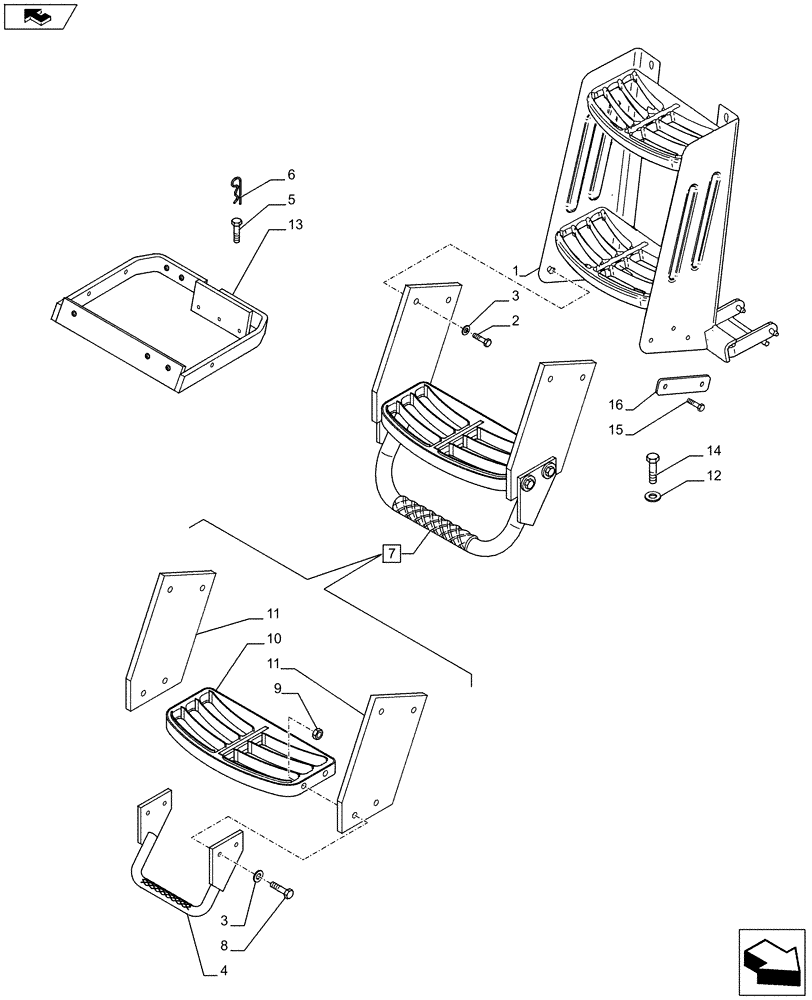

Запчасти Case IH PUMA 185 (90.114.02) - FOOT STEP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87483119

FOOT BOARD

RH, Serial Range: -C7144

1шт.

1

84476507

FOOT BOARD

, Start Serial: D7144

1шт.

2

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

4шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

8шт.

4

87565423

FOOT BOARD

1шт.

5

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

6

81865839

COTTER PIN

2шт.

7

87565407

FOOT BOARD

Contains Ref. 3,8-11,16

1шт.

8

16040824

SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

10

87371923

STEP

Rubber Step

1шт.

11

87565408

SUPPORT

2шт.

12

13578404

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

2шт.

13

87483105

RETAINER

1шт.

14

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

16040824

SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

16

84475630

MOUNTING PLATE

1шт.
