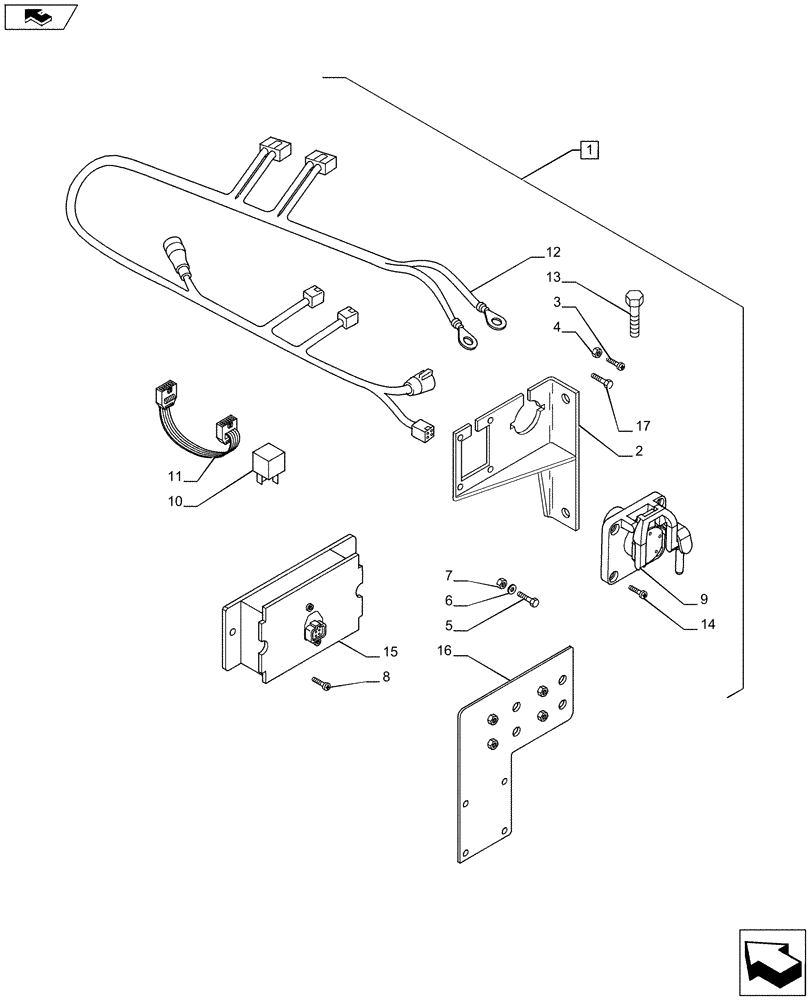

Запчасти Case IH PUMA 185 (88.055.19[03]) - DIA KIT - PREDISPOSITION FOR VIRTUAL TERMINAL - SOCKET (88) - ACCESSORIES

1

719258184

Predisposition for Virtual Terminal, Contains Ref. 2-17

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84167089

SUPPORT

1шт.

3

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

4

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

6

10571579

LOCK WASHER,M6

4шт.

7

15896211

NUT,M6, Cl 8

4шт.

8

15645501

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 16mm

2шт.

9

87522416

ELEC CONNECTOR,Female, 5 Cavities

Isobus Breakaway

1шт.

10

82017871

RELAY,12V, 20A

2шт.

11

87638191

WIRE HARNESS

Link Lead

1шт.

12

84264480

HARNESS

Isobus Power

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

14

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

M5 x 20

4шт.

15

82038683

ELEC. TERMINAL PIN

ELEC CONNECTOR

1шт.

16

84268760

SUPPORT

Isobus Power Fuses

1шт.

17

86585707

SCREW,Phillips Drive, Pan HD, M4 x 35mm, Cl 4.8

4шт.
